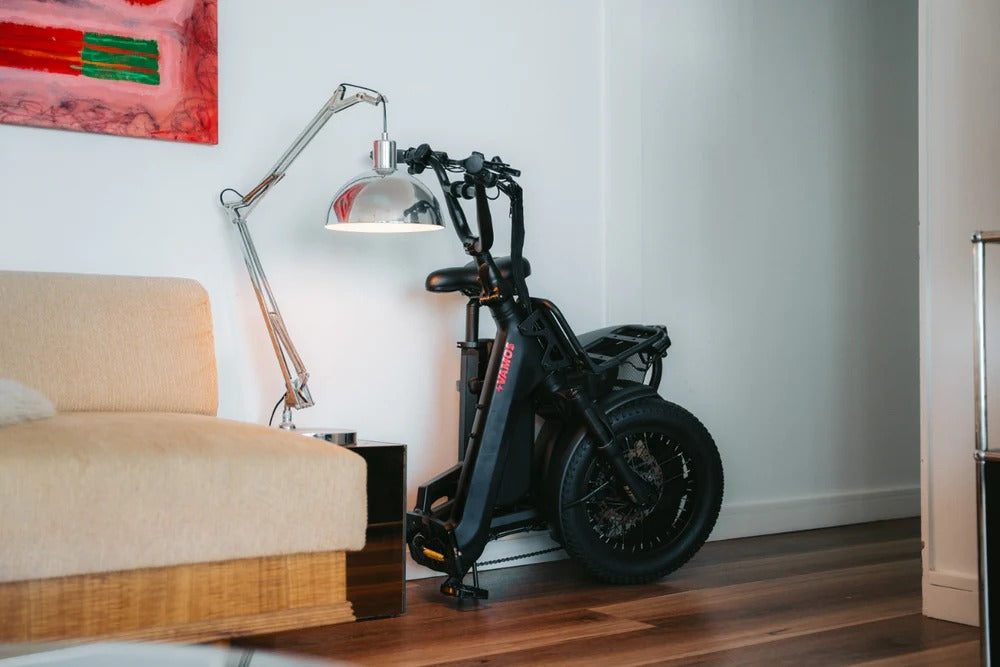

Doblez is Spanish for ‘fold’ and this bike does just that. Fold and unfold in seconds. Able to collapse to suitcase size, this bike is a pocket rocket. An amazing travel companion, and for those limited in space, it fits into small spaces.
Who’s the Doblez for?
This little rippa is perfect if you want to zip around but are space-conscious. Keeping small and compact is Doblez’s primary spec. Purpose made for people that have limited space, this e-bike has been designed to have an incredibly small footprint. Riders that want a functional e-bike to more easily fit in their vehicle or home, El Doblez is for you. Campers and travelers love it. It’s exceptionally convenient to take with you on trips away. It’s also great for just zipping up to the shops, off-road riding (including on sand), and the casual rider looking to cruise around. Being able to drop the seating position to a low of 80cm also makes this a great option for smaller riders.
Technical Specifications
-
Motor: High-Torque Brushless Rear Hub Motor (250W/500W adjustable wattage settings)
-
Battery: Samsung 52V 15Ah Lithium-ion (Upgrade options available: 20Ah / 25Ah)
-
Charger: 2A Smart Charger (includes 2 keys for battery lock)
-

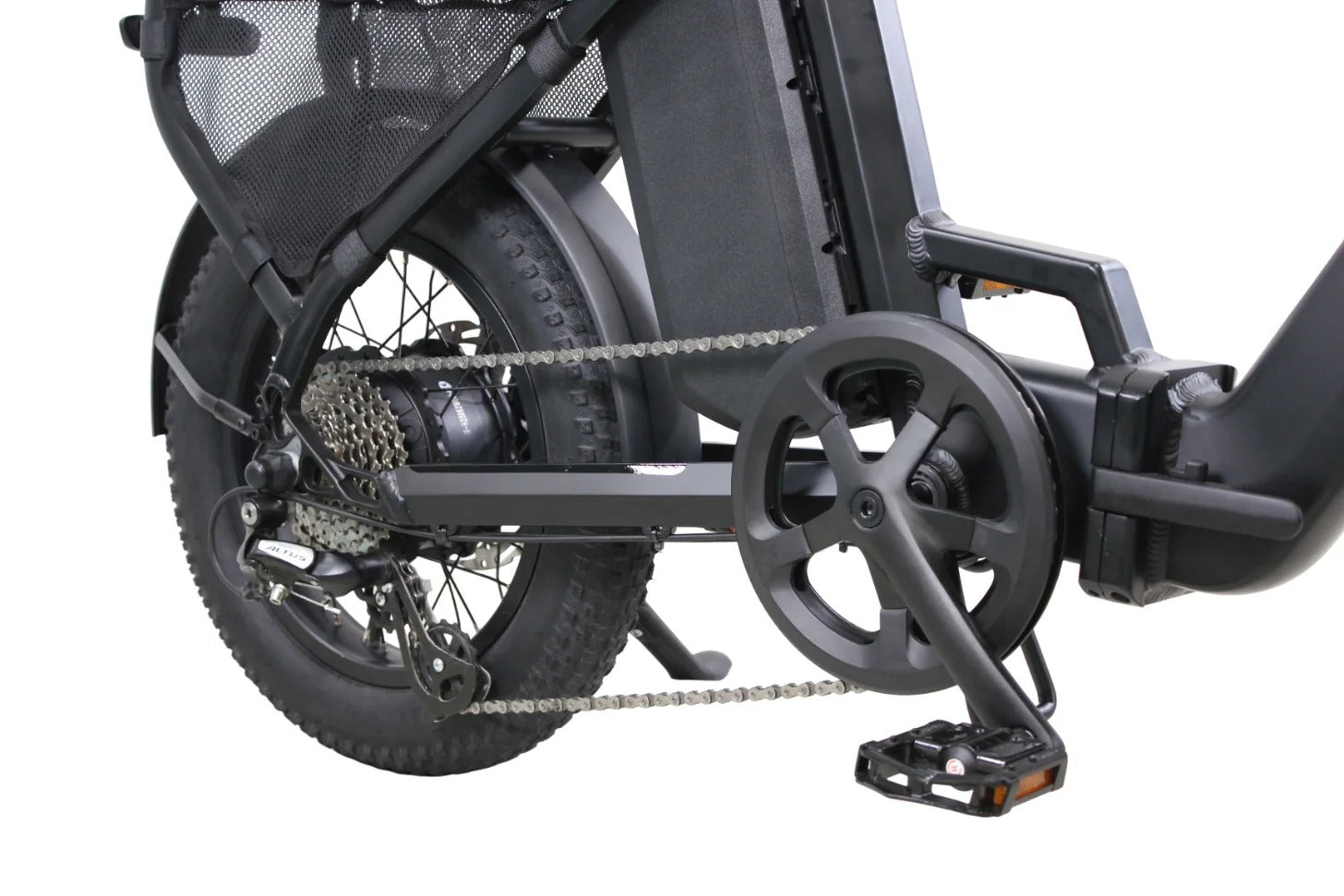

Gearing: SHIMANO 8-Speed Gear Set
-
Brakes: Tektro Front & Rear Hydraulic Disc Brakes
-

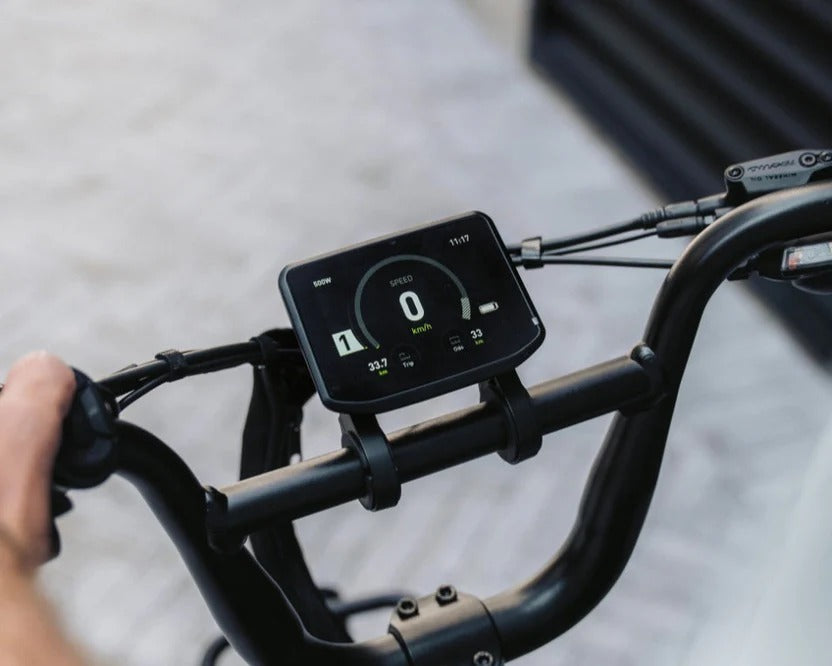

Display: BC 351 Colored LCD Display with integrated USB charging port
-
Throttle: Thumb Throttle (for private property use; can be disabled for public roads)
-
Sensor: Intelligent Speed Sensor
-
Lights: Integrated Front and Rear Light System (powered by the main battery)
Performance & Range
-
Top Speed: 25km/h (Street Legal) | Up to 40km/h (Unlocked for off-road use)
-
Estimated Range: 75km+ (depending on rider weight, terrain, and PAS level)
-
Payload Capacity: 130kg+
-
Weatherproofing: IP-rated; suitable for riding in rain or shine
Build & Comfort
-
Frame: Lightweight High-Grade Alloy (Foldable)
-
Forks: Front Suspension Forks for a smooth ride
-

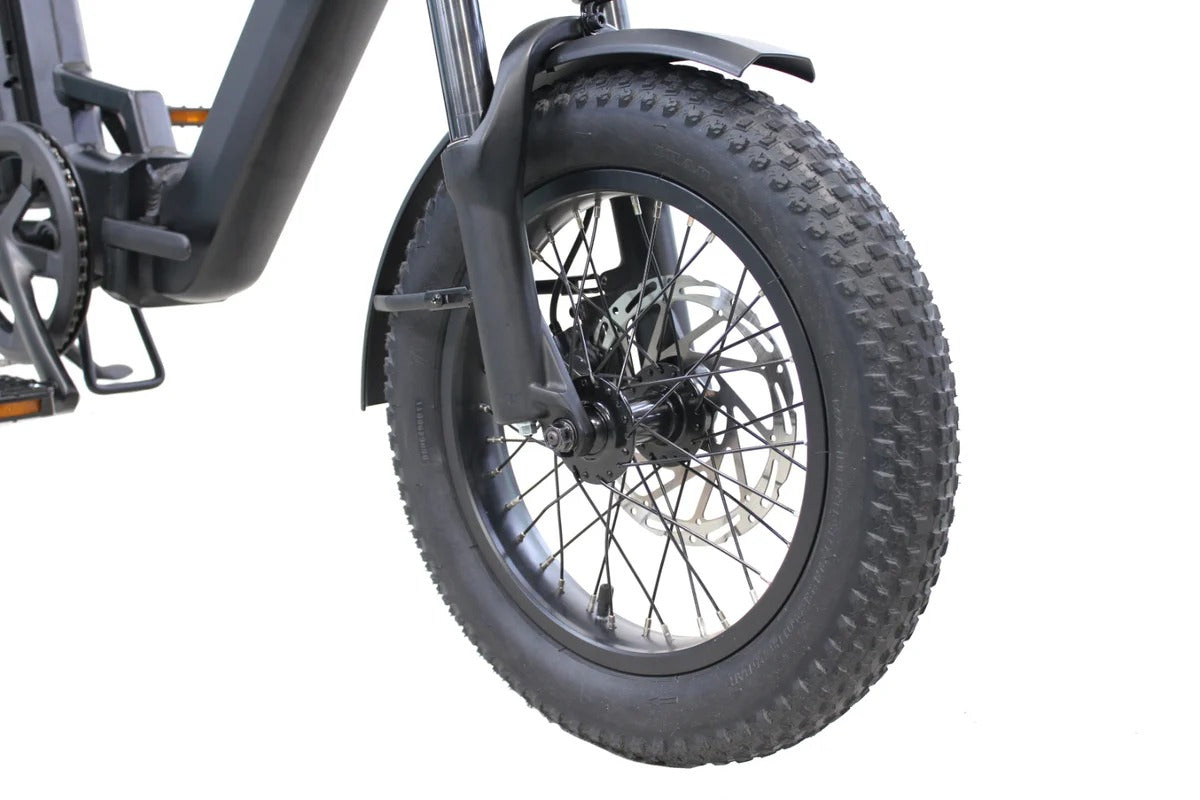

Tyres: Chaoyang 16" x 3" All-Terrain Fat Tyres
-

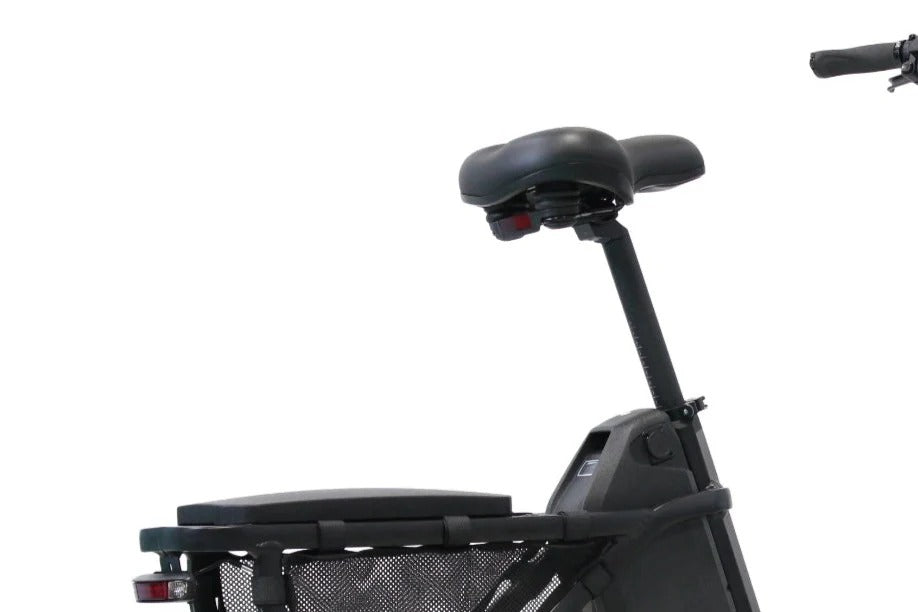

Saddle: Justek Comfort Saddle with Suspension Seat Post
-
Handlebars: Ergonomic Handlebar Grips
-

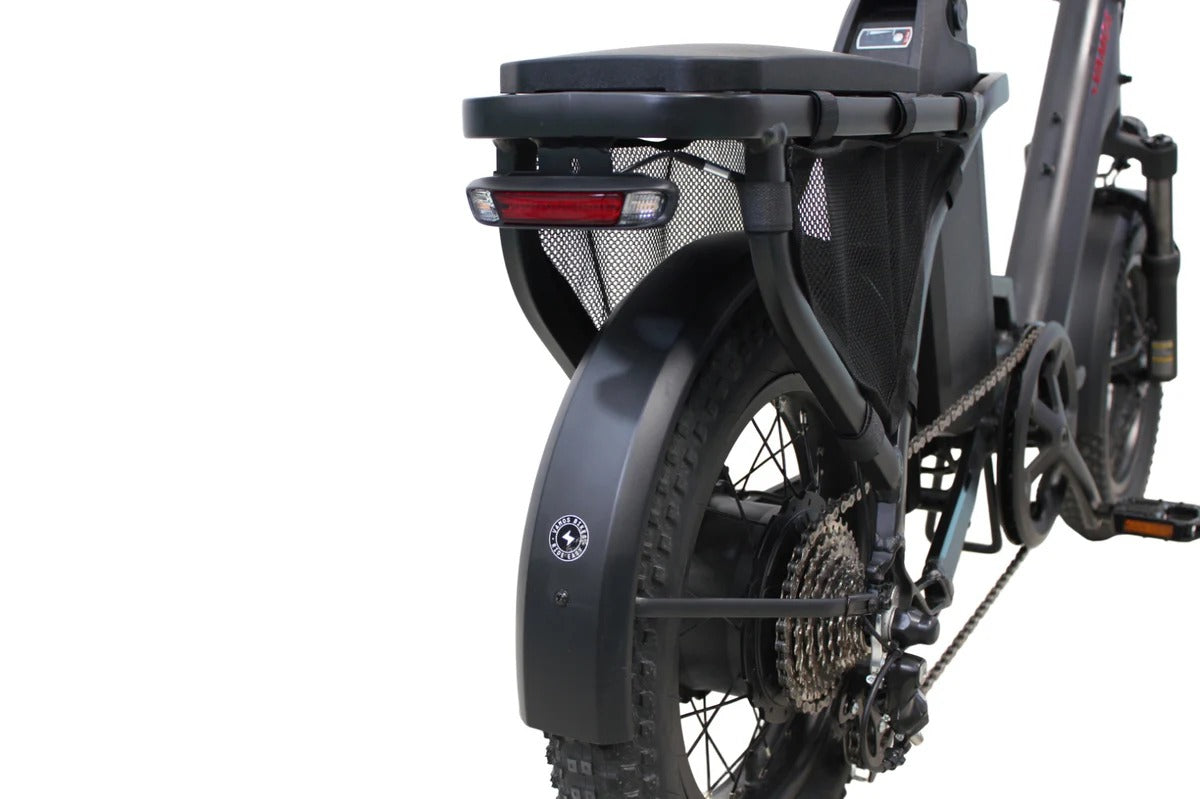

Mudguards: Integrated Front and Rear Mudguards
Dimensions & Weight
-
Total Weight: 28.5kg (approx. 23kg without battery and seat)
-

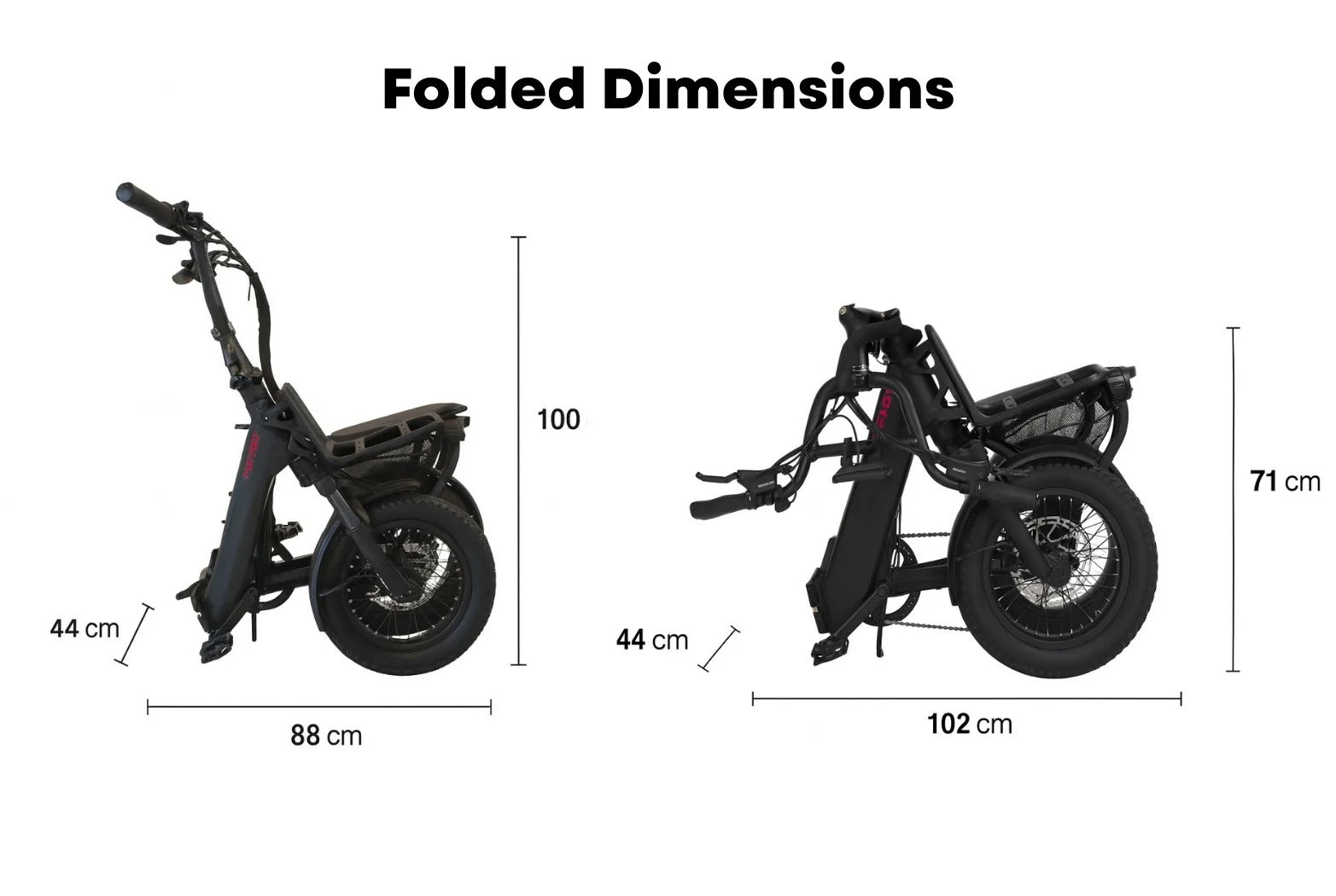

Folded Dimensions (Fully Folded): 102cm (L) × 44cm (W) × 71cm (H)
-
Folded Dimensions (Half Folded): 88cm (L) × 44cm (W) × 100cm (H)
-

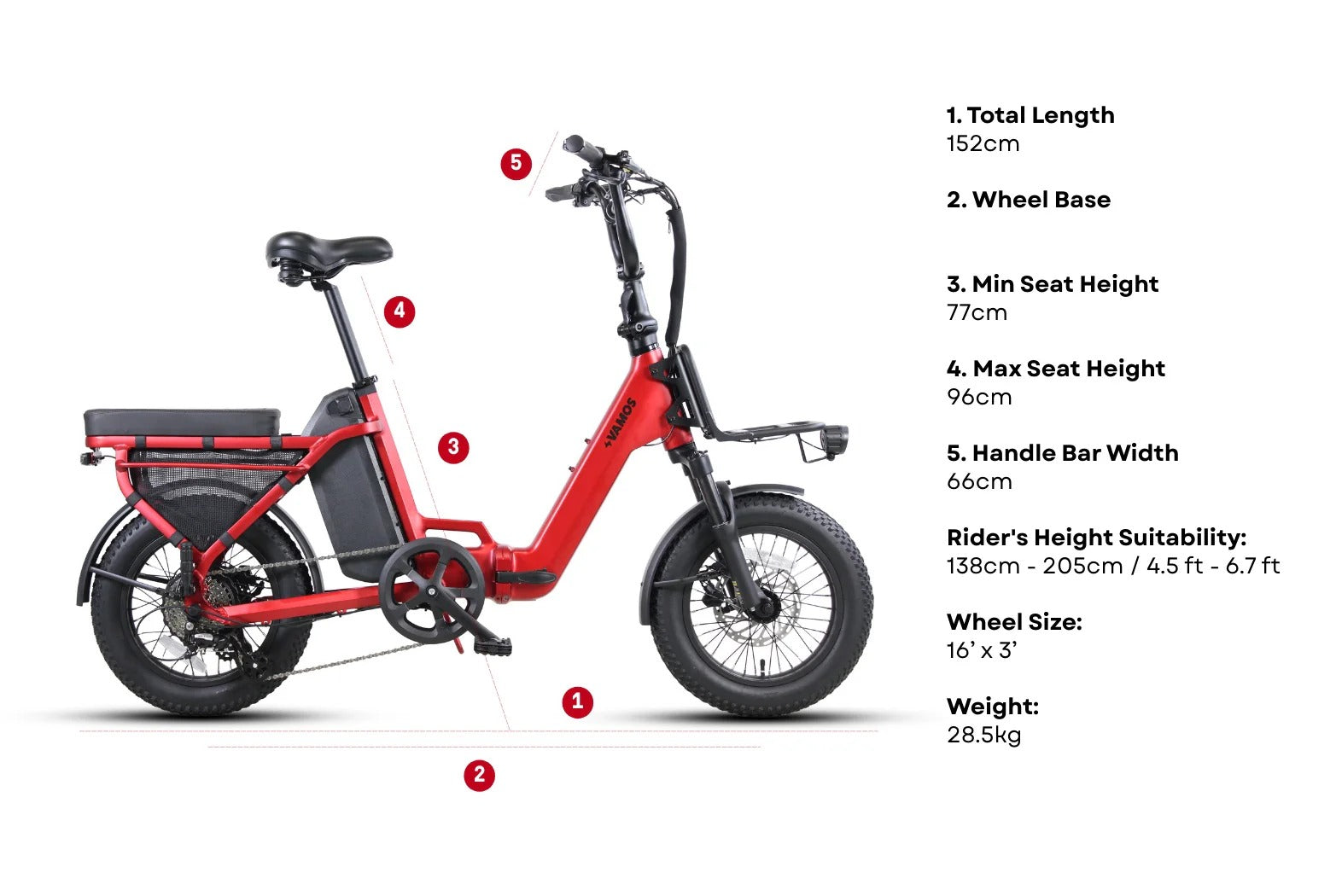

Total Length: 158cm
-
Wheel Base: 110cm
-
Seat Height: Adjustable from 77cm to 96cm
-
Handlebar Width: 66cm
-
Rider Suitability: 138cm – 205cm (4.5 ft – 6.7 ft)
