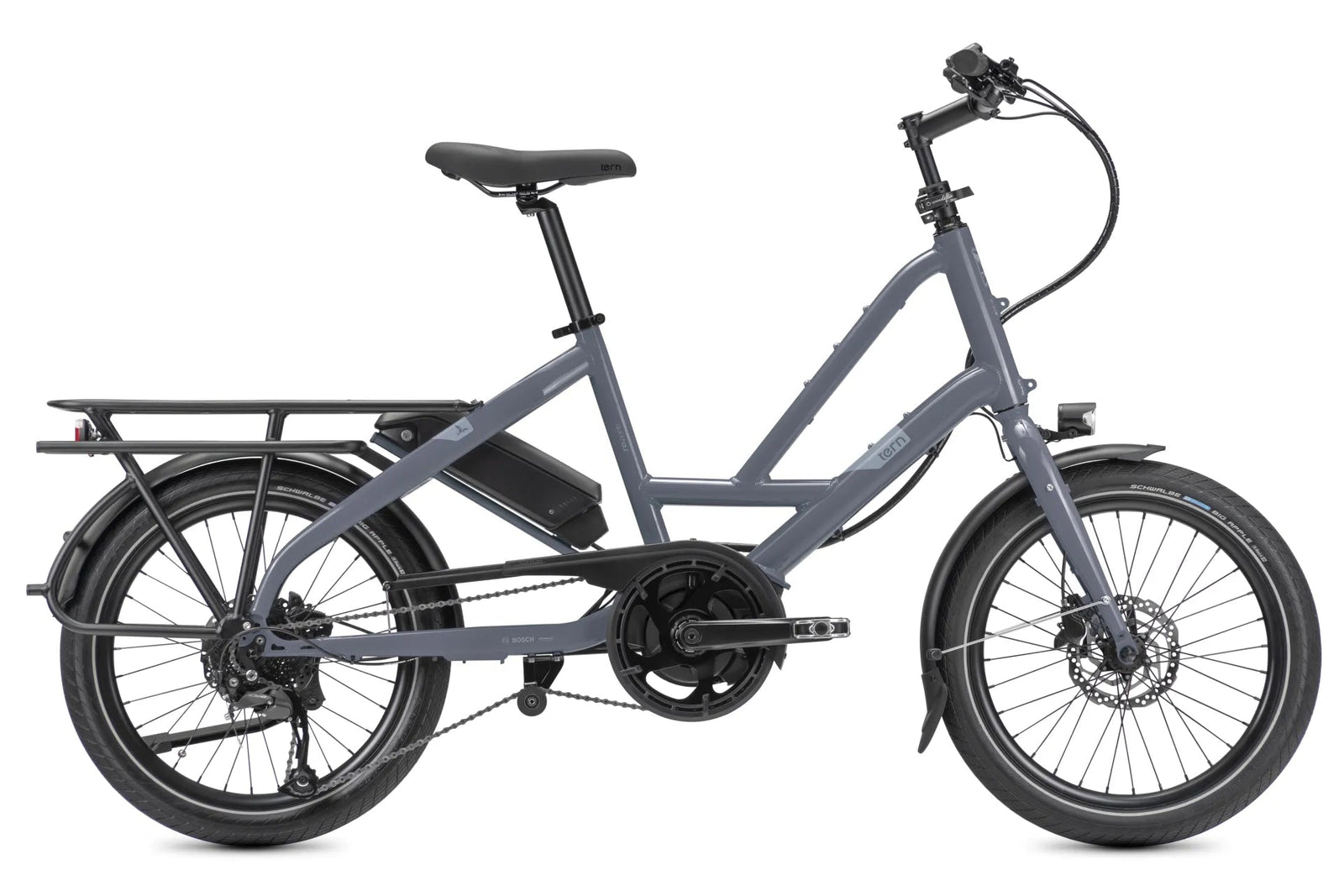

Tern Quick Haul P9 Performance

Price
$4,995
Colour:Beetle Blue
Pickup available at 132 Union Road

Usually ready in 4 hours

View store information

The Quick Haul P9 is an affordable electric cargo bike designed to carry passengers, pets, and all your stuff. A tested and built-to-last Bosch ebike. The P9’s handling is brilliant. The steering is light and for quite a long bike it feels very agile, slotting through bike-path gates and between street furniture.

What Makes it a P9?

  • Bosch Performance Line Cruise motor provides up to 65 Nm of torque and 300% support
  • 1x9-speed Shimano Alivio groupset with trigger shifter

Quick Haul Highlights

  • Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
  • Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm seatpost
  • Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
  • Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
  • Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
  • Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

SPECIFICATIONS

GENERAL INFO
SPEEDS:
1 x 9
WEIGHT:
22.9 kg (50.5 lb)
GEAR INCHES:
31" - 95" (2.45 - 7.57 m)
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
60 - 64 cm (23.6 - 25.2 in)
DISTANCE: SADDLE TO PEDAL:
68 - 110 cm (26.8 - 43.3 in)
SUGGESTED RIDER HEIGHT:
160 - 195 cm (63 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
150 kg (330.7 lb)
MAX RIDER WEIGHT:
120 kg (264.6 lb)

FRAME
FRAME:
Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
FORK:
Cargo, steel, EFBE approved: 150 kg

COCKPIT
STEM:
Speedlifter, 150 mm extension, 3D Forged stem, 31.8
HEADSET:
TH, cartridge bearings
HANDLEBAR:
Low riser, 31.8, 6061-AL
GRIPS/BAR TAPE:
Velo ergonomic, lock-on
SADDLE:
Velo Comfort
SEATPOST:
31.6 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP:
Tern Collar

BRAKES
FRONT BRAKE:
Shimano, hydraulic disc
REAR BRAKE:
Shimano, hydraulic disc
BRAKE LEVERS:
Shimano, hydraulic disc
BRAKE CABLE & HOUSING:
Shimano, hydraulic disc

WHEELS
FRONT HUB:
Shimano disc
REAR HUB:
Shimano disc
SPOKES AND NIPPLES:
Stainless steel
RIMS:
Kinetix Comp, for disc
TIRES:
Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION
SHIFTER(S):
Shimano Alivio, 1 x 9 spd, trigger
REAR DERAILLEUR:
Shimano Alivio Shadow
CRANKSET:
Tern custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL:
Shimano 11-34T, 9 spd
BOTTOM BRACKET:
Motor integrated
CHAIN:
KMC for eBike, 9 spd
PEDALS:
Urban with non-slip surface
SHIFTER CABLE & HOUSING:
SP

E-SYSTEM

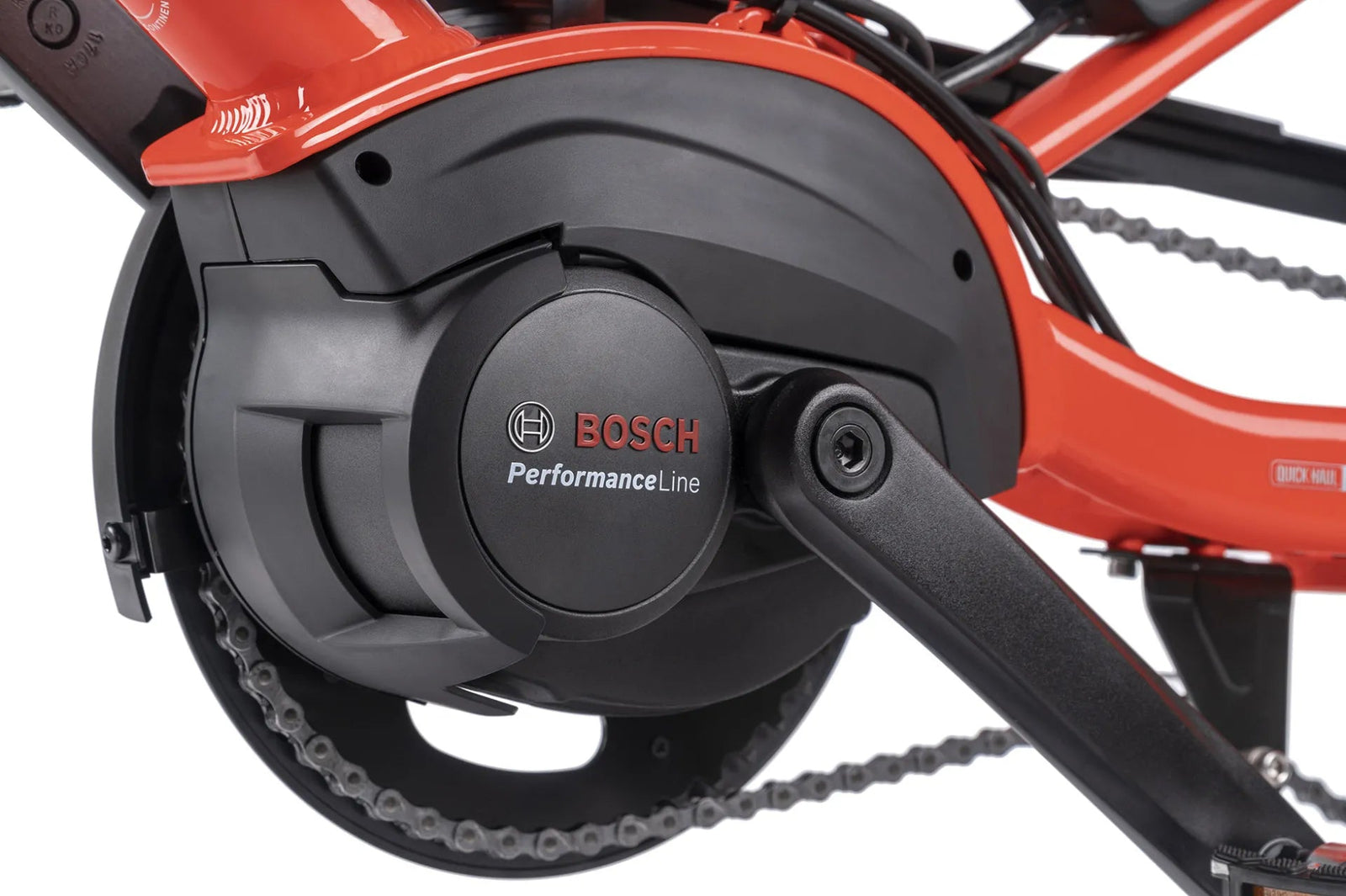

MOTOR:
Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY:
Bosch PowerPack 400
DISPLAY:
Bosch Purion
RANGE:
400 Wh: 53 - 105 km (32.9 - 65.2 mi)
CHARGER:
Compact Charger, 100-240V, 2A

BELLS & WHISTLES
BELL:
Aluminum
CHAINGUARD:
SKS Chainblade
KICKSTAND:
Pletscher design, rear mount
LUGGAGE SOCKET:
Combo Mount

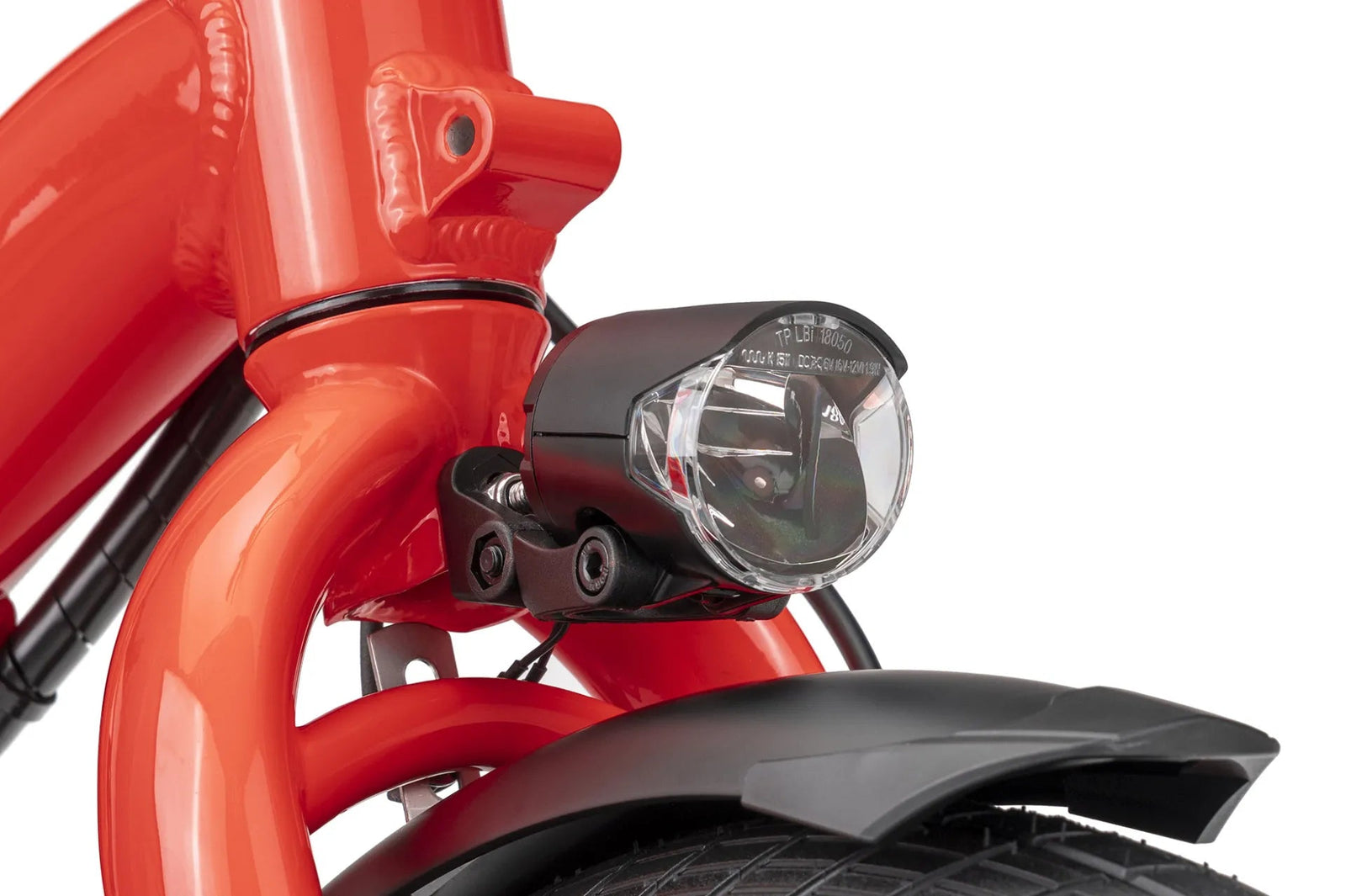

FRONT LIGHT:
Herrmans, 120 lumens

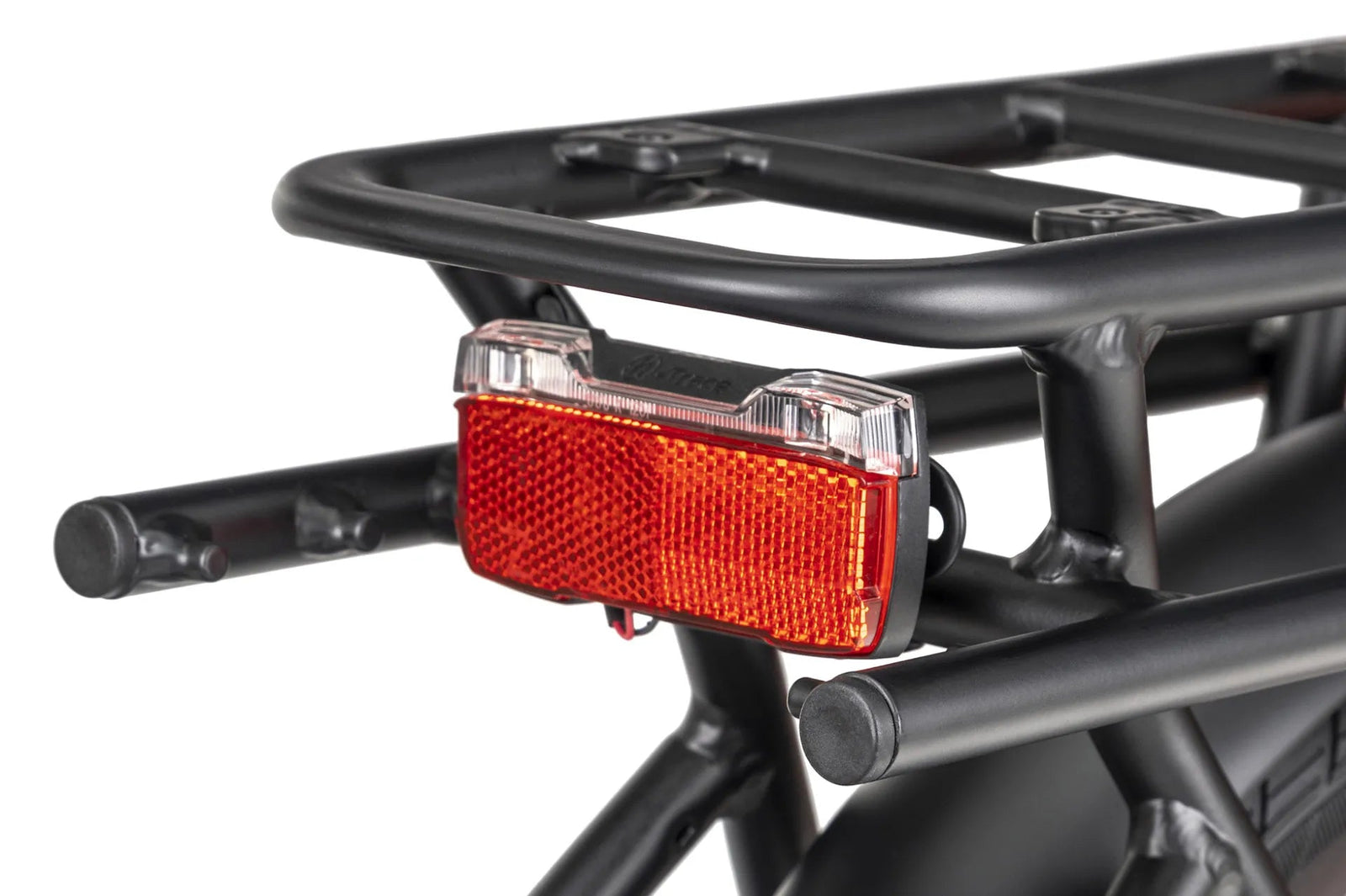

REAR LIGHT:
Herrmans
FENDERS:
Chromeplastic, stainless hardware

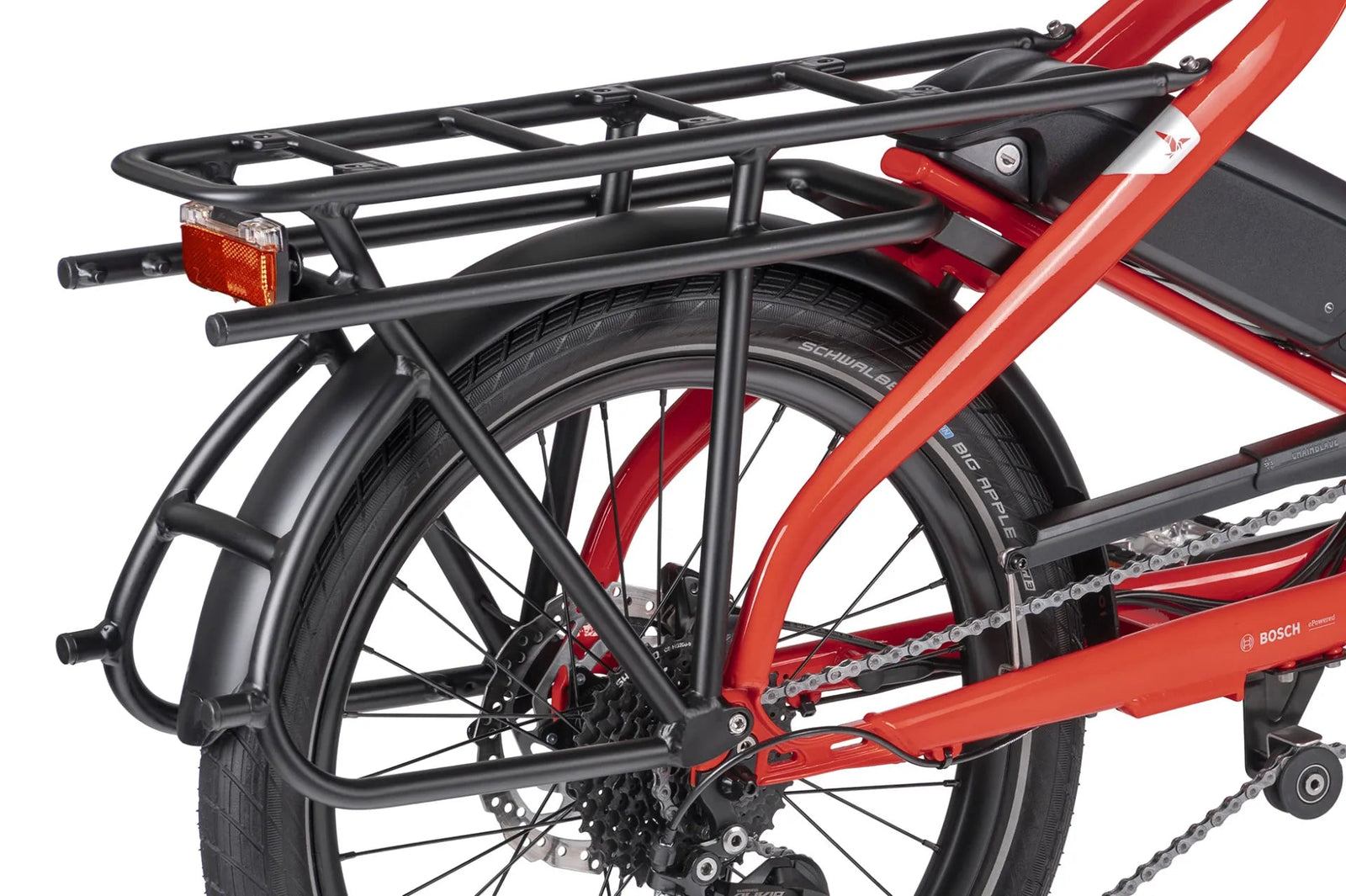

RACK(S):
Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
In stock! Usually ships within 24 hours. Free shipping on orders over $99 (excl. e-Bikes, e-Bike Batteries and some Bulky Products)
