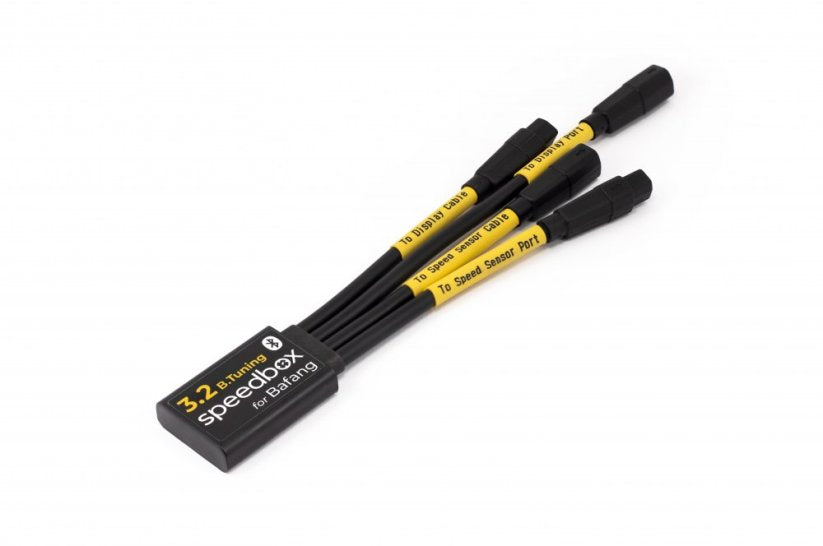

SpeedBox 3.2 B.Tuning for Bafang (M200, M410, M500, M510)

PROPERTIES:
Compatible with: SpeedBox App
Activation: SpeedBox App / LIGHT button / + - + -
Maximum speed: unlimited
Speed limit setting: yes
Display shows: actual values
Compatible with motors :
   Bafang Max Drive M200
   Bafang Max Drive M410
   Bafang Max Drive M500
   Bafang Max Drive M510
Not compatible with:

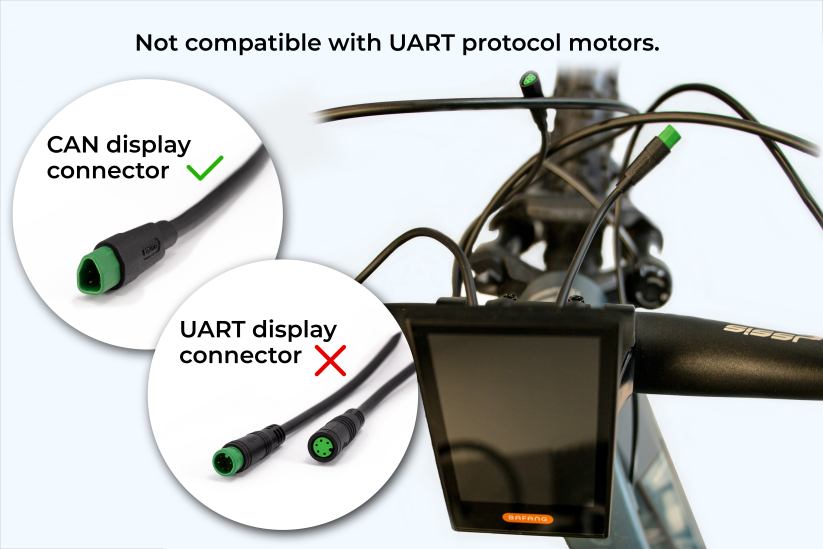

   Displays with UART connectors
   Bafang Max Drive M300
   Bafang Max Drive M400
   Bafang Max Drive M420

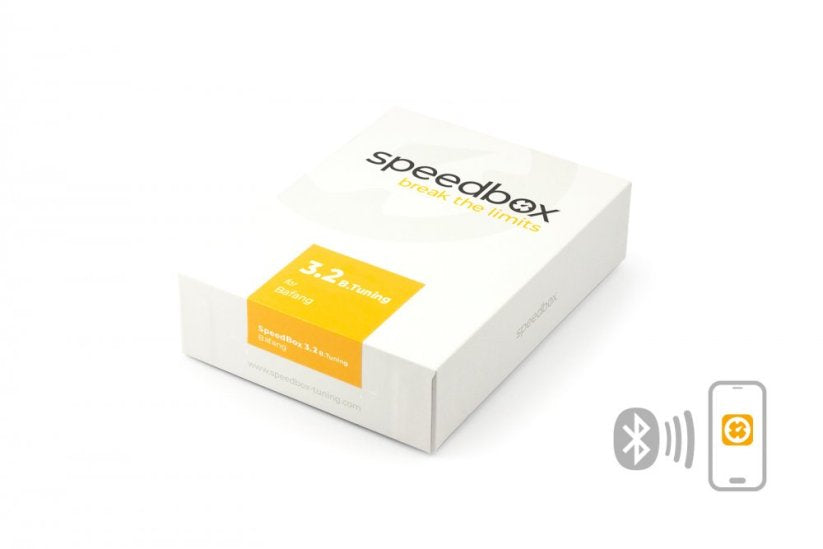

SB32BT_BAF_1pcs_BOX

A smart product of the third generation with an option to set a speed limit of an e-bike.

This new product brings a unique connection of e-bike and mobile phone. The SpeedBox 3.2 B.Tuning chip is a top-notch product perfectly optimized for the most powerful ride and experience. It suppresses the speed limiter so you can enjoy your ride at unlimited speed. Thanks to SpeedBox App mobile application you can monitor and store all the parameters of your trip on the display of your phone in any place, anytime.

How does SpeedBox 3.2 B.Tuning work?

The tuning kit can be activated directly from the mobile application or on your bike’s display. After pressing the LIGHT button or + - + -, a value of 99 km/h (62 mph) is displayed and from now on you will be able to ride at an unlimited speed.

To deactivate the tuning kit, press the LIGHT button or + - + - again. The value of 25 km/h (16 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the tuning.

You can set the maximum speed of an electric assistance by changing modes three levels down and then three levels up. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by pressing LIGHT button shortly or by turning the rear wheel 360°. The last displayed limit will be saved after 5 seconds of inactivity.

SpeedBox App for SpeedBox 3.2 B.Tuning

SpeedBox App is an application specially designed for SpeedBox 3.2 B.Tuning, which uses Bluetooth technology to connect your e-bike to your mobile application. After downloading the application and connecting your mobile phone to your e-bike you will see current data and trip parameters displayed on your phone. Individual trips can be stored so that the results can be compared with friends and together they can monitor their performance. So just enjoy the ride and leave checking the parameters for later!

SpeedBox App features:

• Tuning control
• Speed limit settings
• Saving and viewing your trips
• Invisible tuning
• Motor lock
• Motor diagnostics

SpeedBox 3.2 B.Tuning is not limited to working with SpeedBox App. However, it is a great tool that will provide you with a complete overview of your performances.

Download SpeedBox App to your phone just before ordering the SpeedBox 3.2 B.Tuning. You can try out our demo version and get to know all the awesome features and, at the same time, make sure that the application is fully functional on your phone. To connect to the SpeedBox B.Tuning your phone needs to be equipped with Bluetooth 4.0 or higher.
