Speedbox 3.0 For Bosch

Price
$349.95
Pickup available at 132 Union Road

Usually ready in 4 hours

View store information
PROPERTIES:
Speed limiter: deactivated
Display shows: actual values
Compatible with motors: Active Line, Active Line Plus, Performance Line and Performance Line CX Line, Cargo Line including motors of the 4th generation, .
Activation: by pressing WALK / + - + - / WALK +
Compatible with SpeedBox App: NO

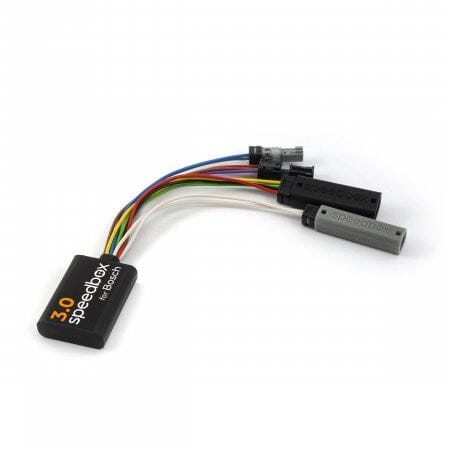

A smart chip of the third generation with an option to set a speed limit of an e-bike.

SpeedBox 3.0 tuning chip enables to select speed limit of your own choice. After the chip is installed, your e-bike's display will show real data, such as maximum and average speeds, daily mileage and cruising range.

How does SpeedBox 3.0 work?
The tuning kit can be activated directly on your bike's display. After pressing the WALK button, a value of 9.9 km/h (6.2 mph) is displayed and from now on you will be able to ride at a speed of 40 km/h, 50 km/h and even more than 60 km/h.

To deactivate the tuning kit, press the WALK button again. The value of 2.5 km/h (1.6 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the chip.

SpeedBox was also designed for e-bikes that do not have a classic control unit with Walk button. In this case you can just use the combination of + - + - buttons and SpeedBox will be activated. You can easily deactivate SpeedBox in the same way.

You can set the maximum speed of an electric assistance by changing modes: Turbo - EMTB - Tour - Eco - Tour - EMTB - Turbo. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by pressing WALK button shortly or by turning the rear wheel 360°. The value of 1,5 km/h on the display corresponds with the limit of 15 km/h, 2 km/h corresponds with the limit of 20 km/h, 2,5 corresponds with 25 km/h, 3,0 corresponds with 30 km/h, 9,9 corresponds with 99 km/h etc. The last displayed limit will be saved after 5 seconds of inactivity.

When using SpeedBox 3.0 with Bosch motors of the 4th generation (produced in 2020 or later) it is necessary to leave the bike on after finishing the ride until a value of 0.0 km/h is displayed. During this process the remaining time will be displayed in minutes. Then it is safe to turn off your bike and you can start looking forward to your next trip.

Assembly
When connecting the SpeedBox chip to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you. Disassembly of our tuning chip is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us.

If you are planning to install SpeedBox on a brand-new bike, make sure you ride it for at least 1 km before the chip is activated.

Warning
Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one's own risk. The use of SpeedBox may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.
