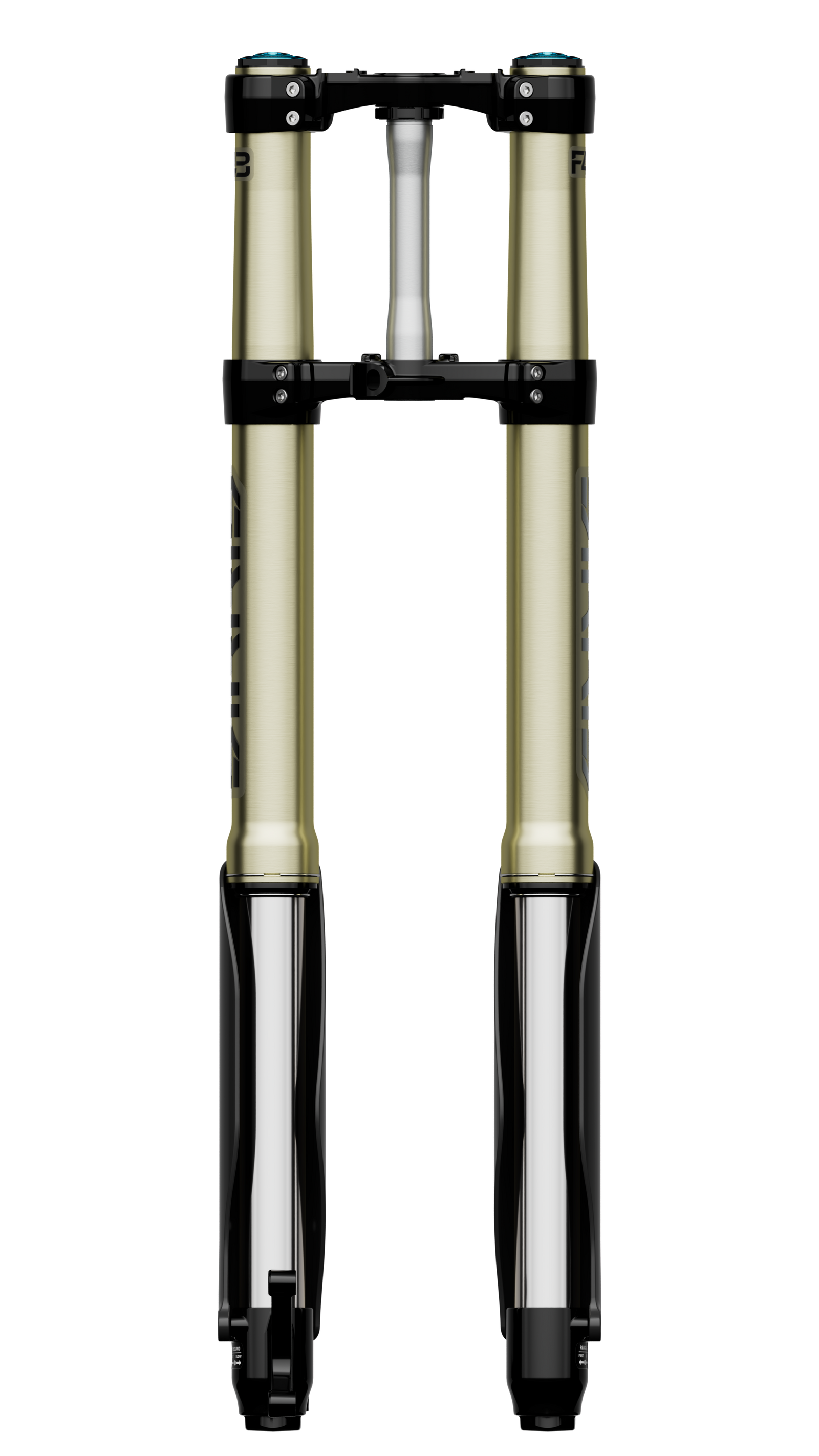

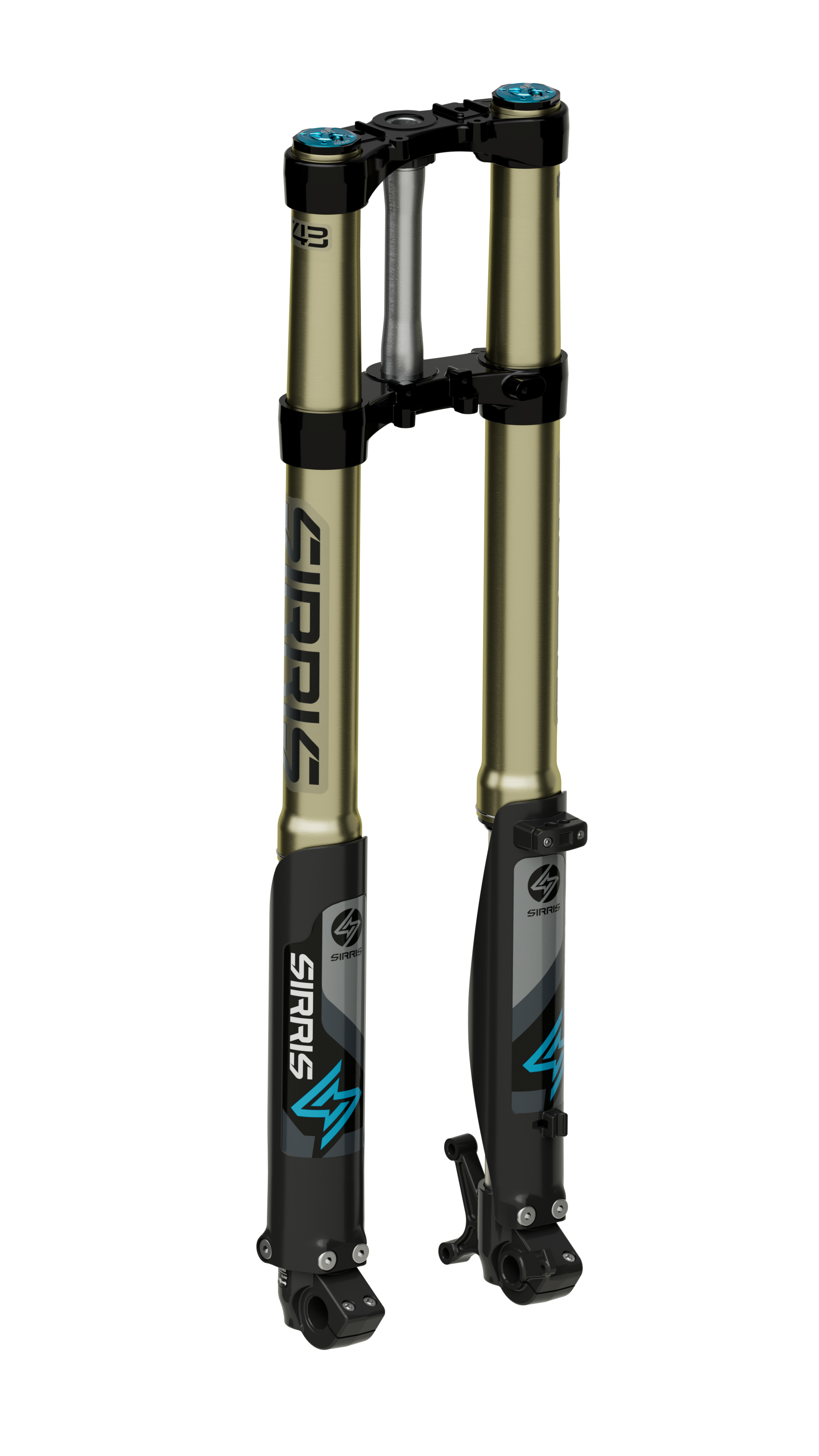

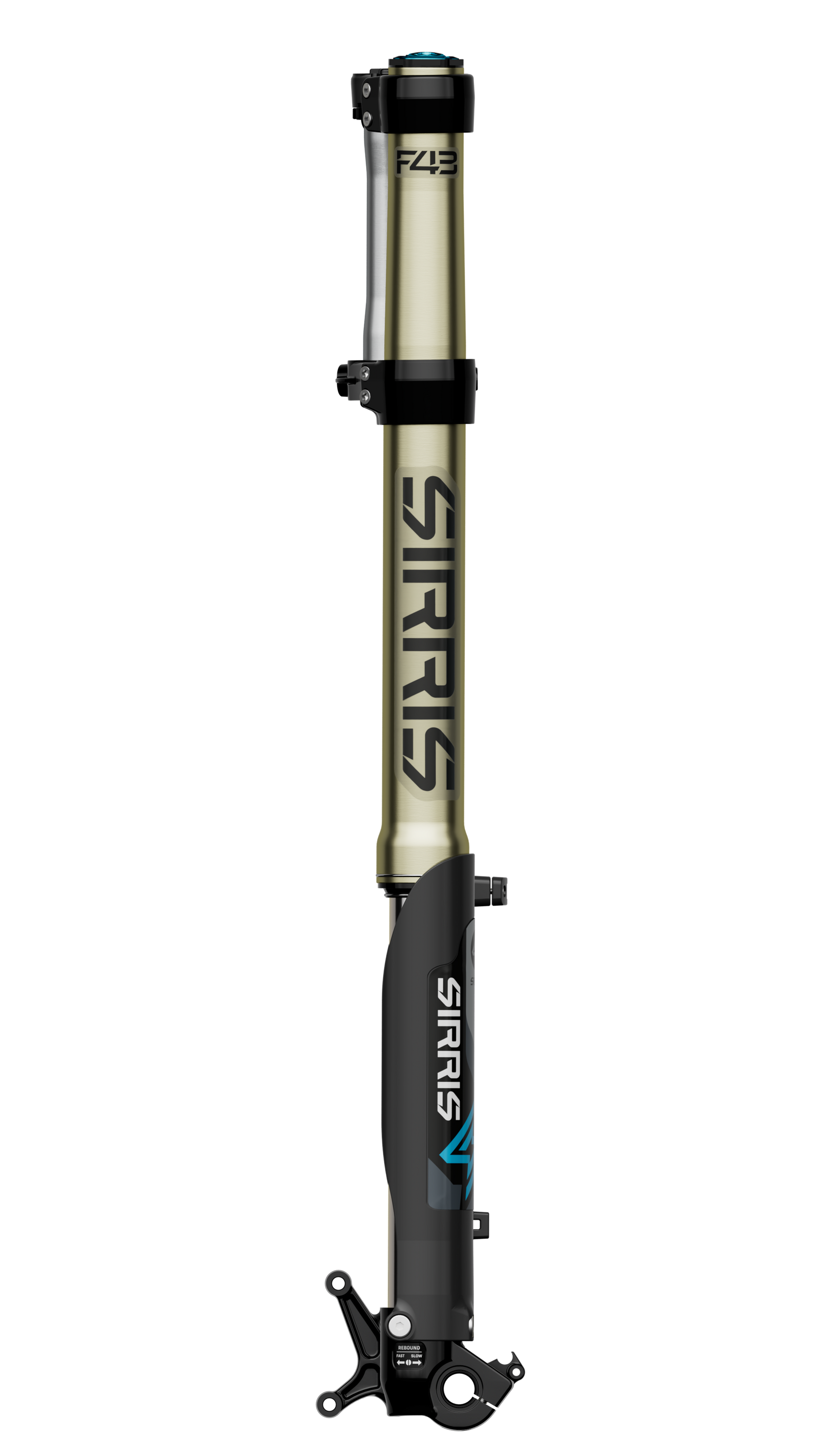

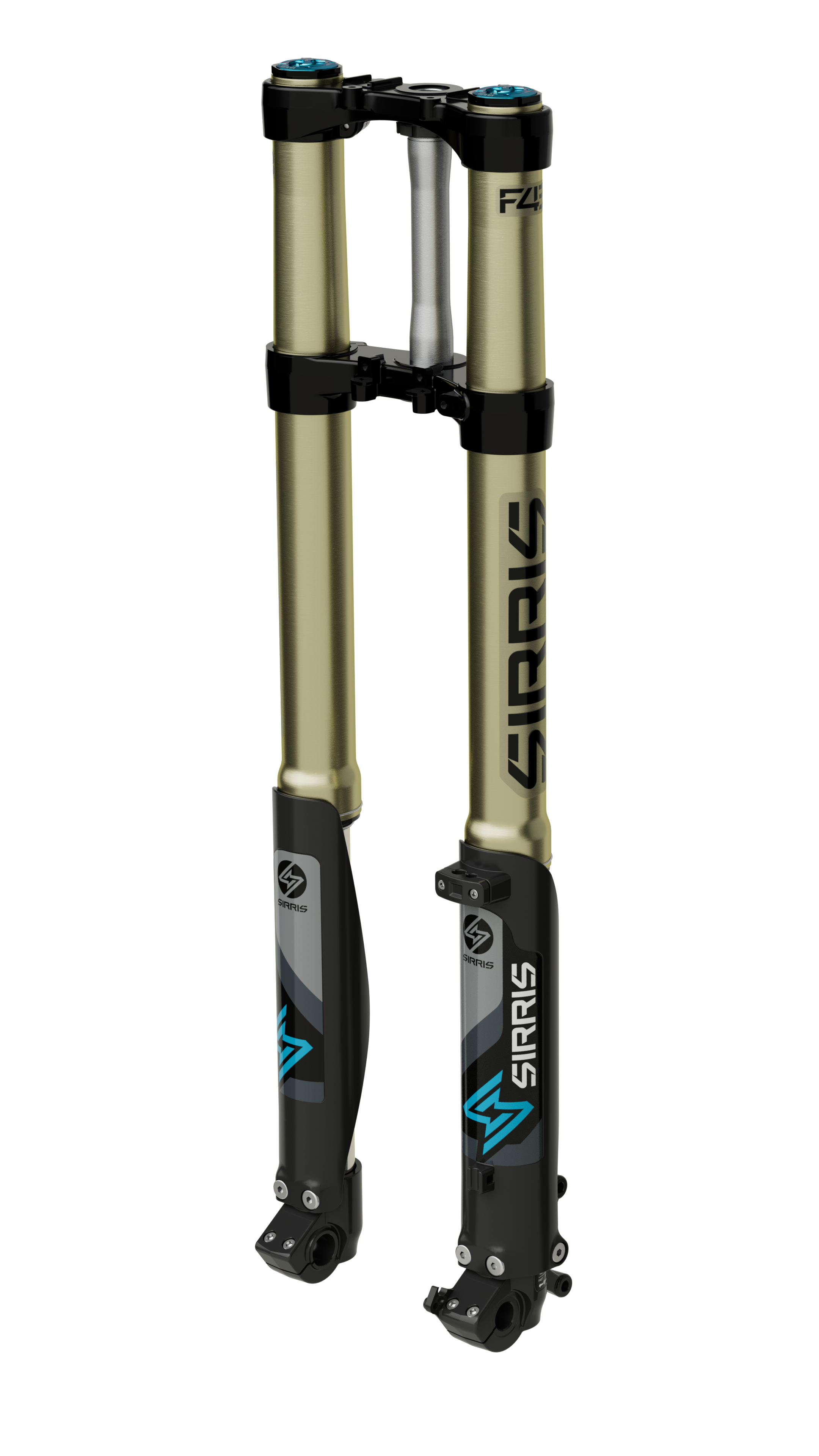

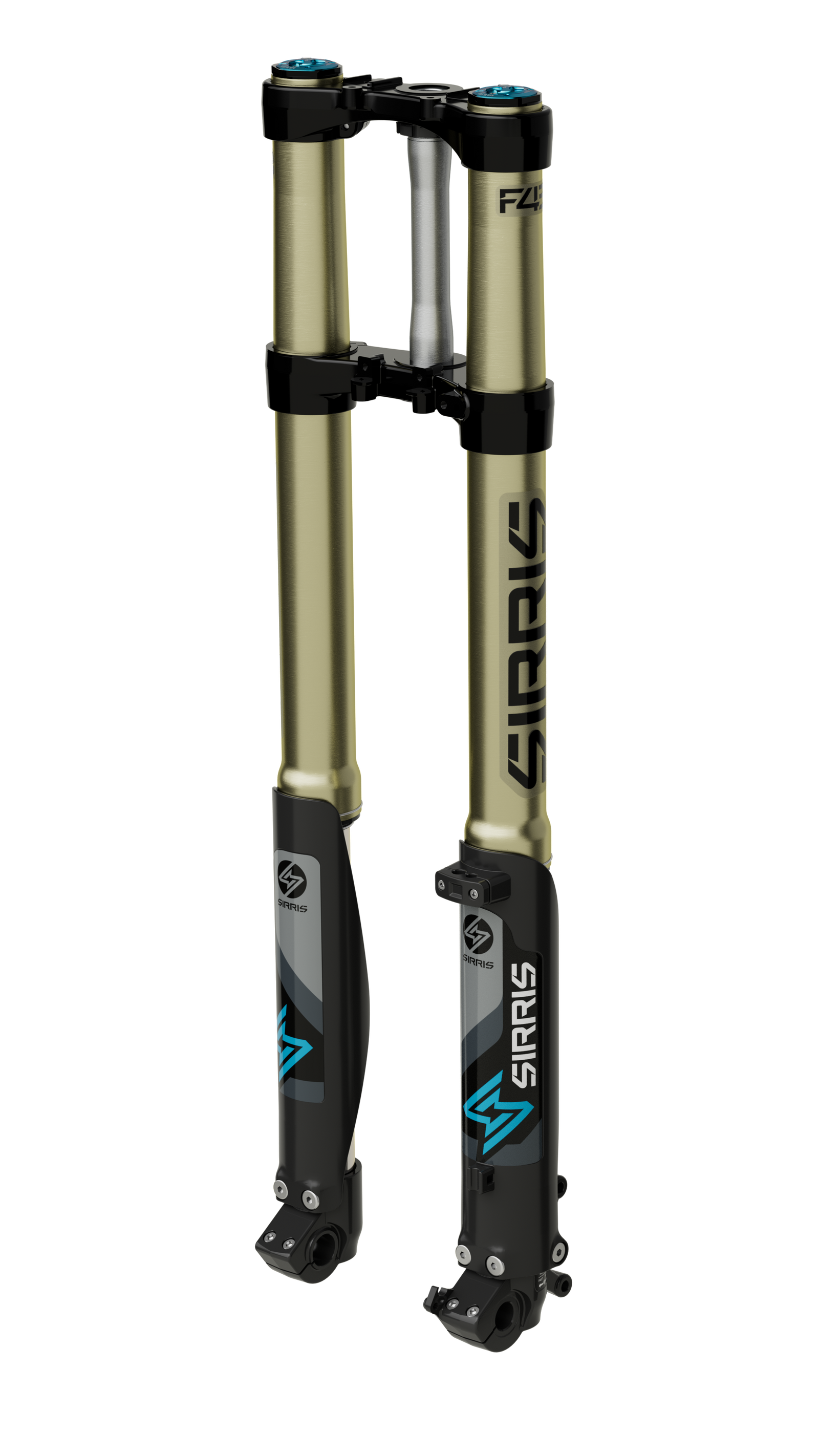

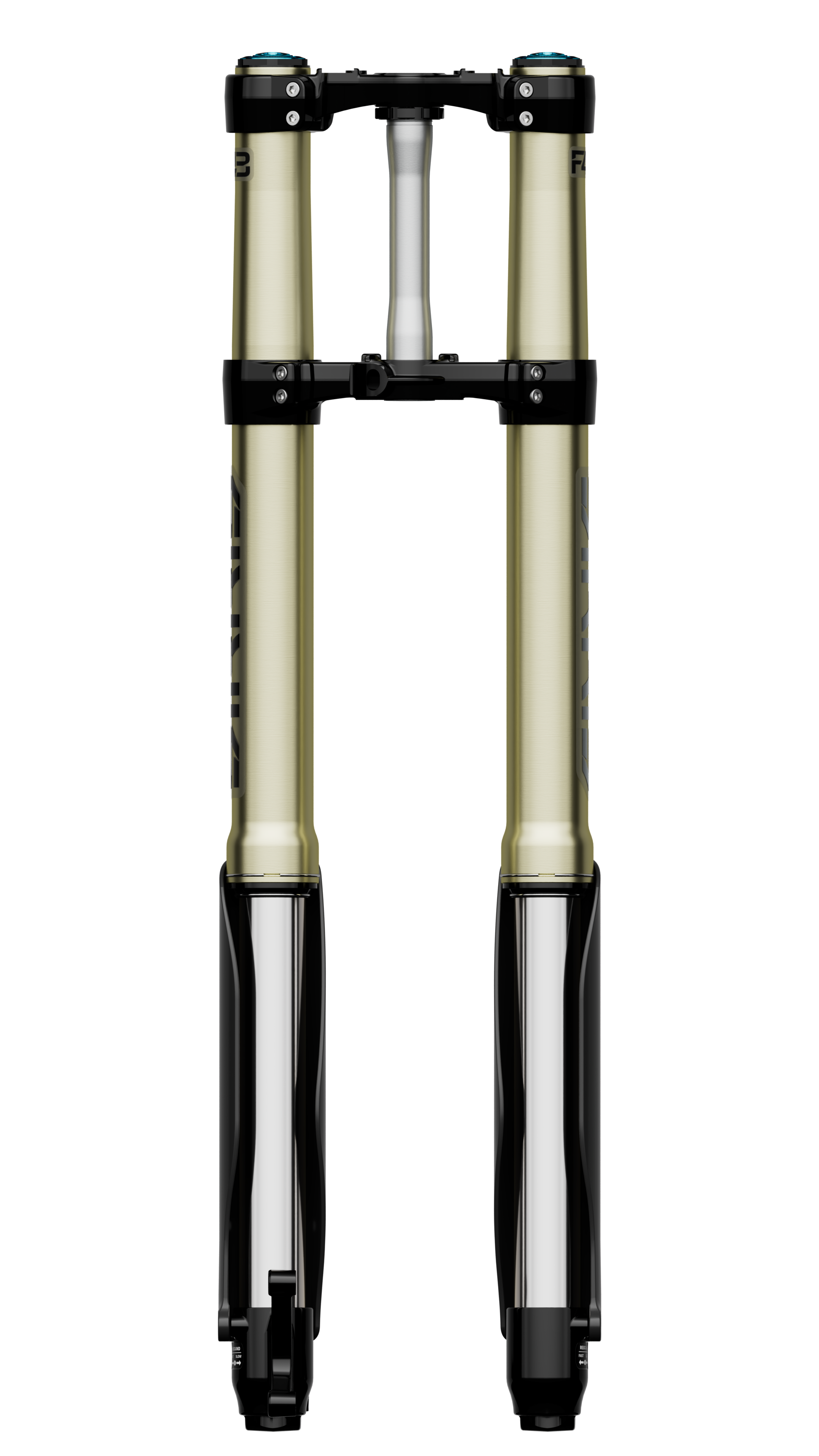

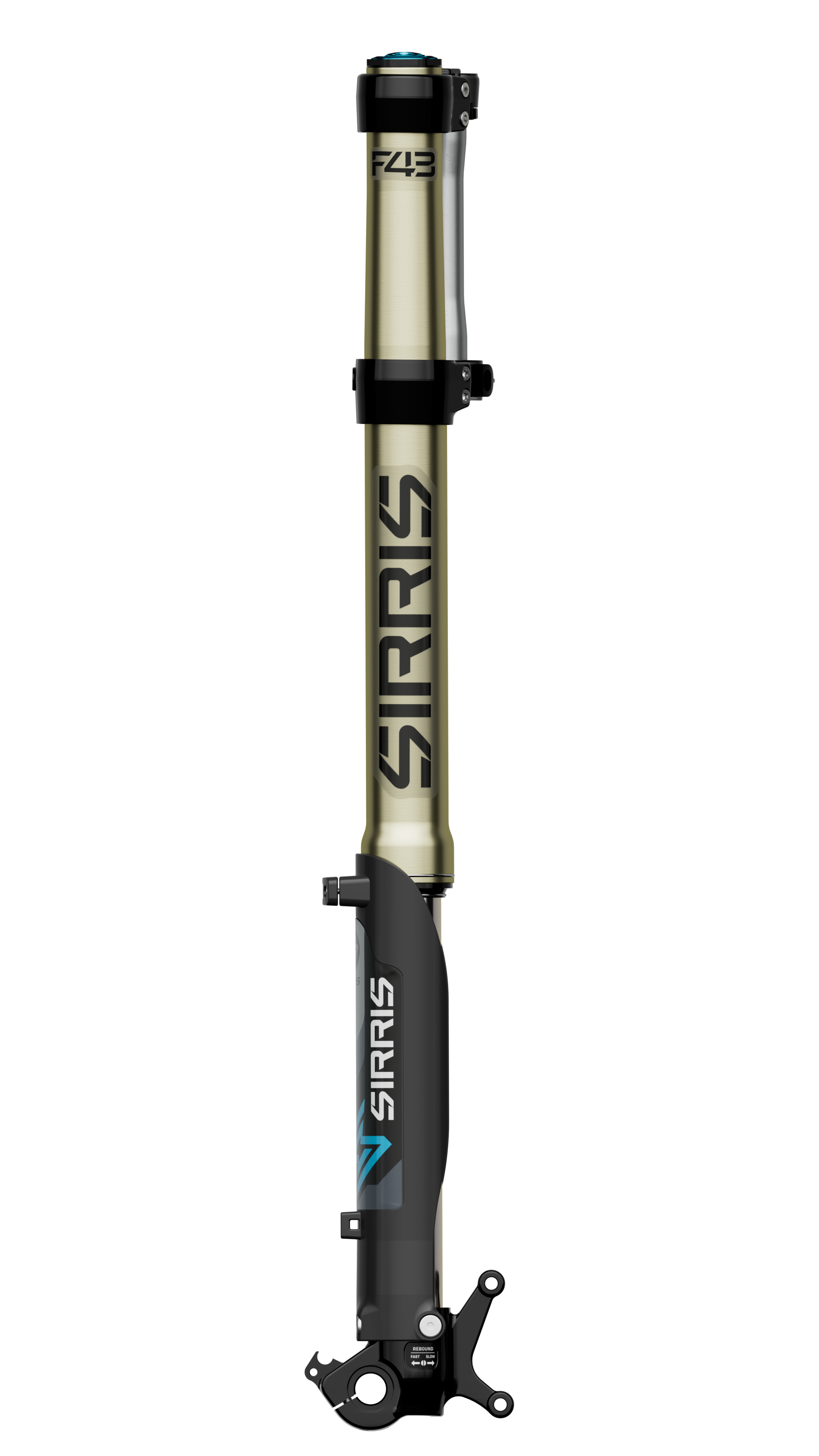

The F43 front fork — Super responsive. Purpose-tuned. Pressure balanced. With 246 mm of ultra plush travel, its true moto architecture is made for the most aggressive riding and can be tuned to your liking.

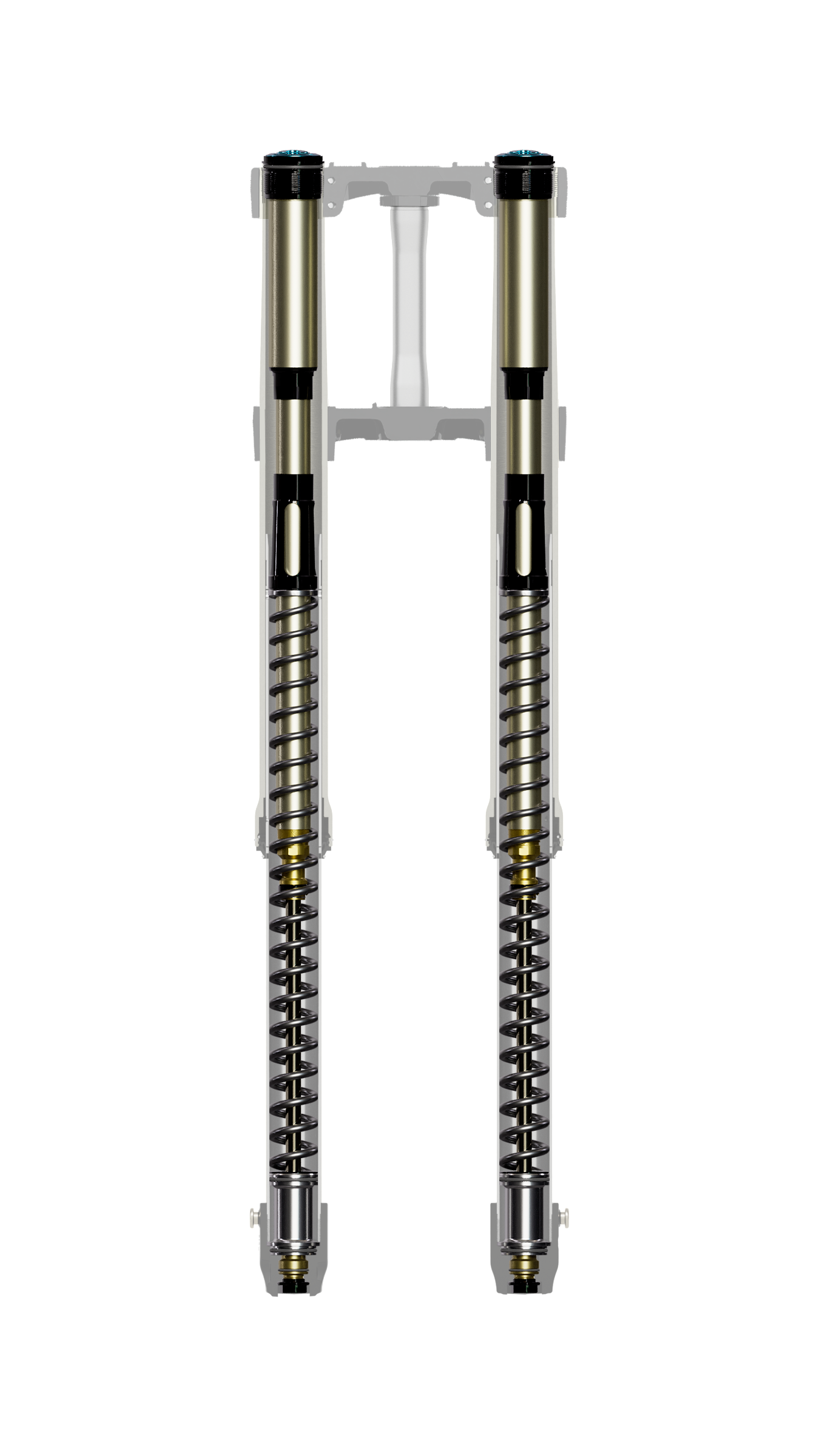

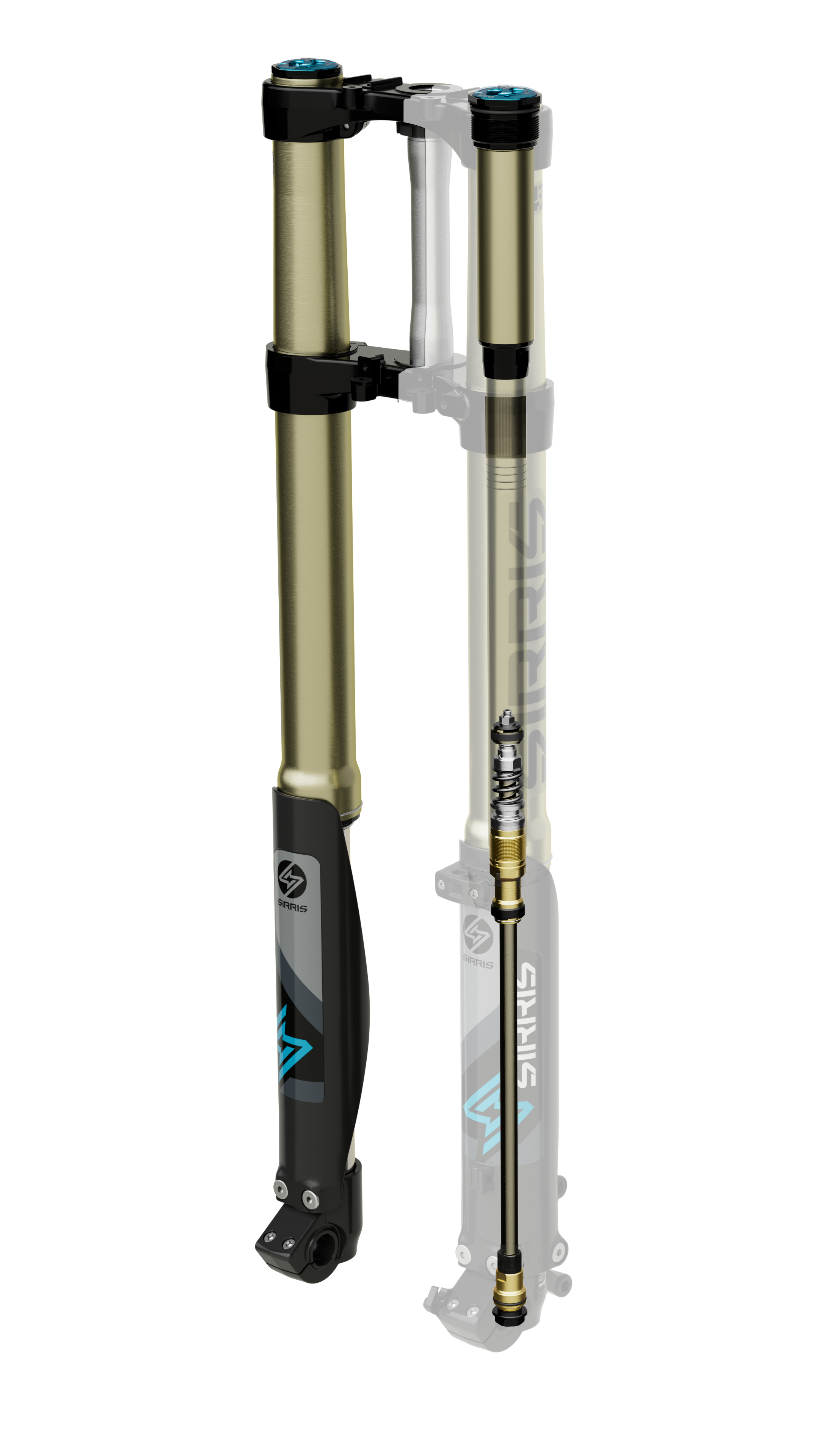

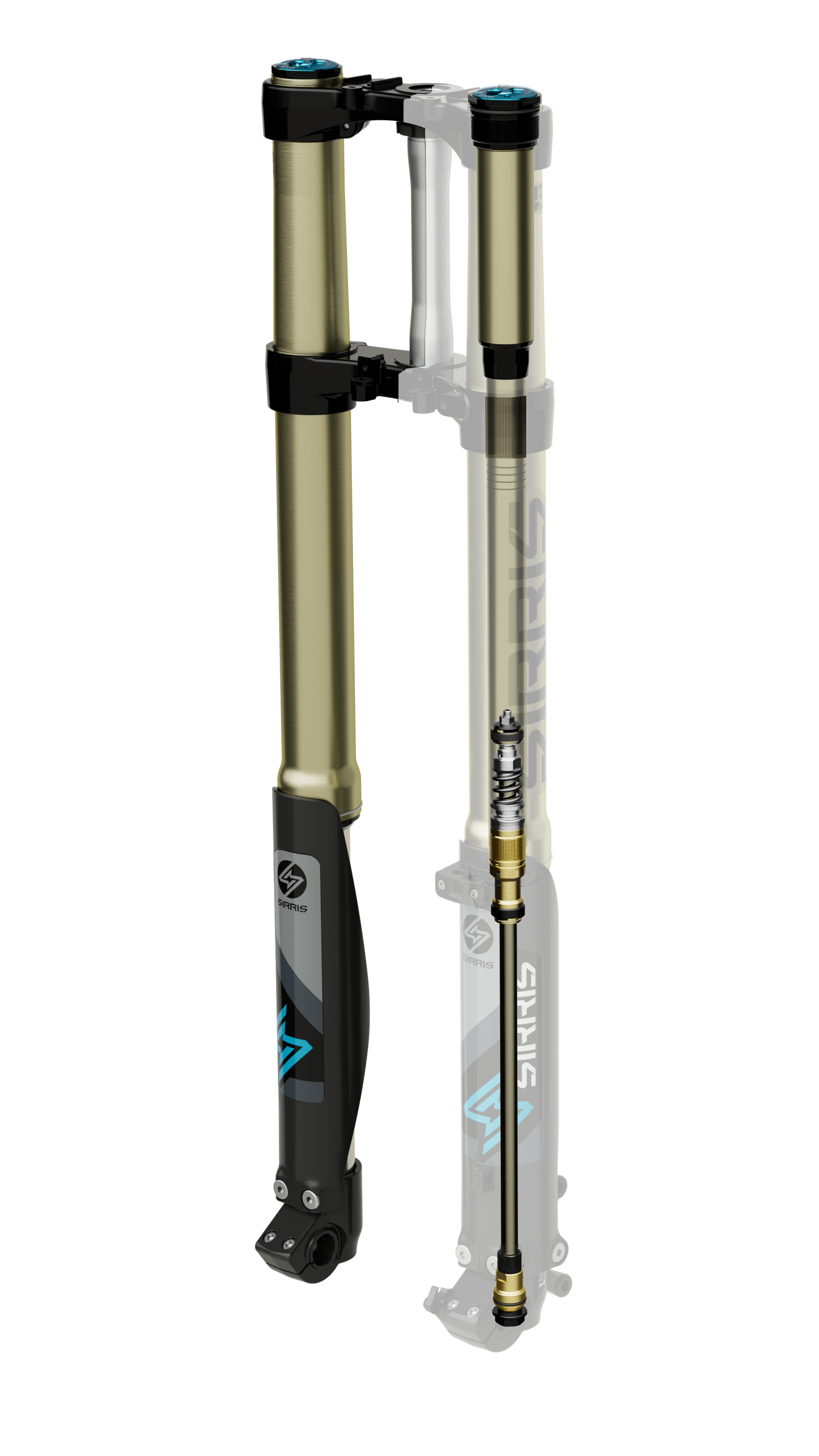

TRUE SYMMETRICAL CLOSED CARTRIDGE F43 Fork
Balanced Performance
Balanced load, race-ready, high performance. No matter how hard you ride or how
many laps you take, closed cartridge will never fade and will always feel predictable.
Hydraulic Bump Stop
Gives rider a soft landing at max stroke even on the most aggressive impacts.
NO COMPROMISES
Dual Oil Circuits for Optimum Performance
Completely separate lubrication and damping oils allows us to optimize damping performance without compromise.
High Quality Materials + Surface Treatments
All cartridge bodies and outer tubes are 7000 series aluminum for maximum strength, finished in type 3 hard anodized for scratch resistance and durability. Hard chrome stanchions and wrap around guards keep it performing like new for longer.
EVERY RIDER EVERY RIDING STYLE
Ultimate Suspension Tuning
Fully tunable valving on compression and rebound, with spring rates matched to rider
weight and riding type. Adapt your suspension setup for different types of rides,
enhancing overall riding experience.
Plug-and-play
Direct swap, no other modifications or additional parts needed to upgrade a stock Ultra
Bee. Comes with dust seal and headset bearing installed on steerer tube for quick
install. Triple clamps and guards fit directly with Ultra Bee fairing and cable routing.
Compression, rebound, and preload adjust
Custom spring rates for all riding styles and rider sizes.
High tensile lightweight springs
Weighs only 8.8 lbs (4 kg) per leg (standard configuration spring)

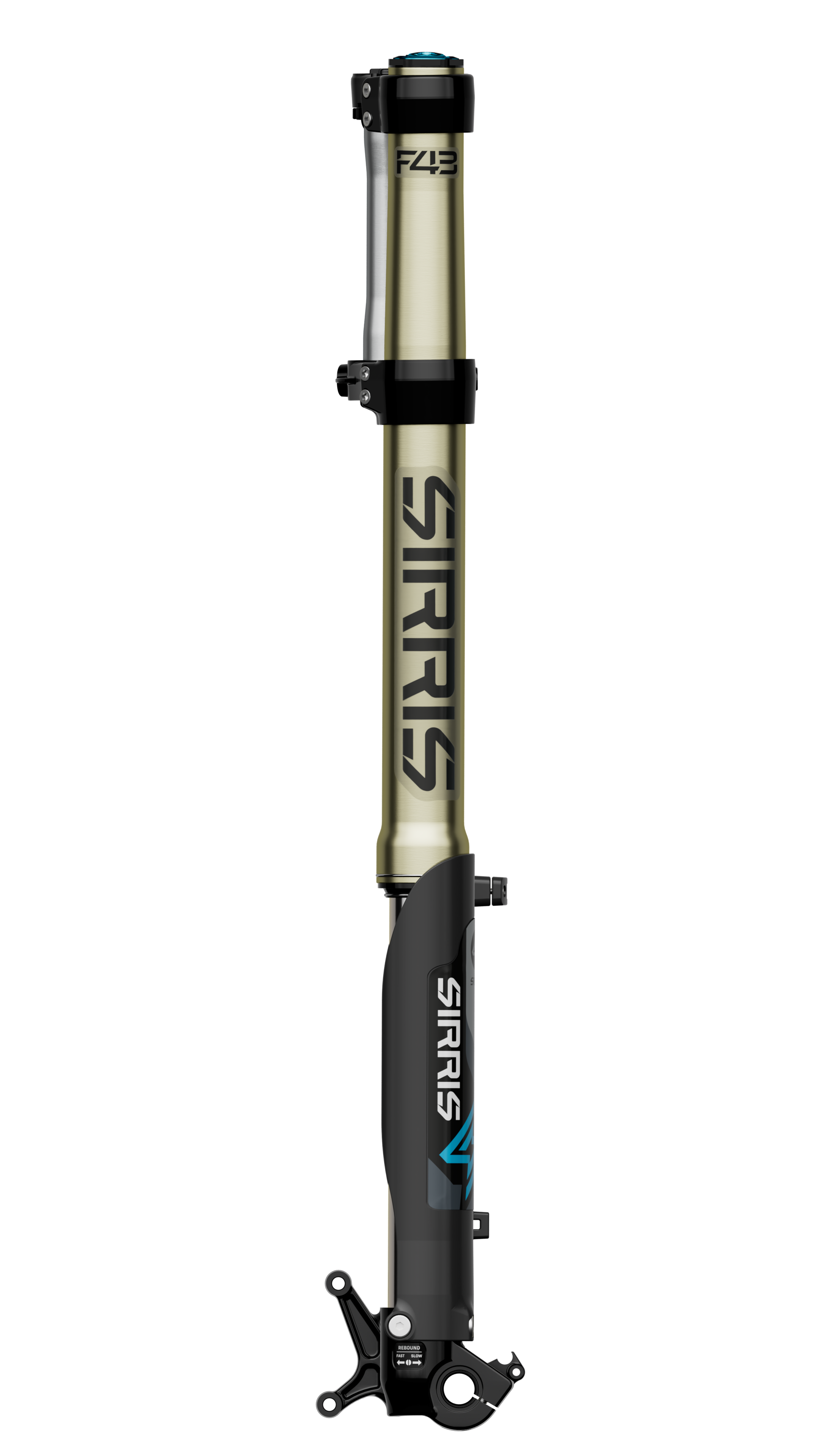

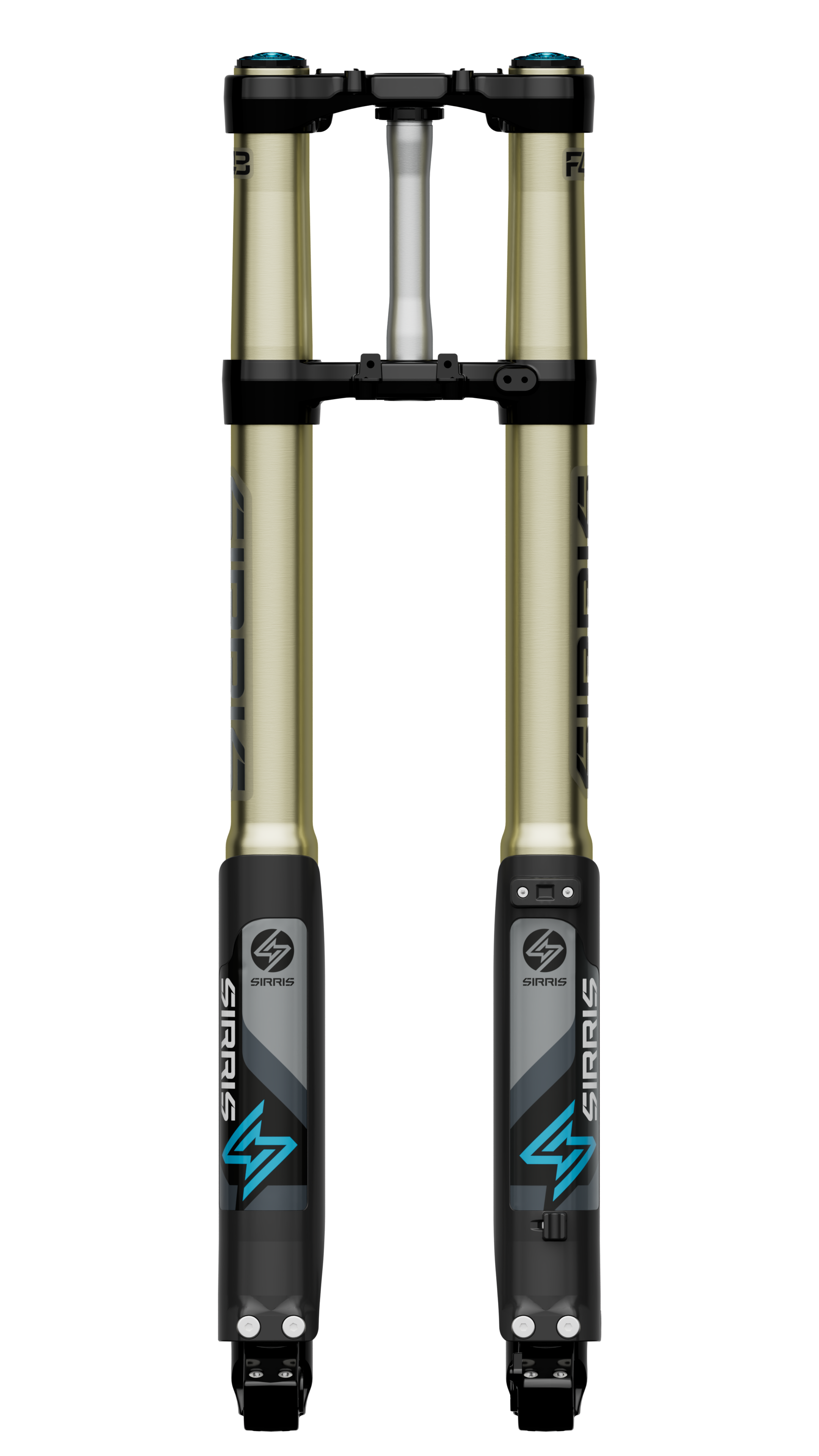

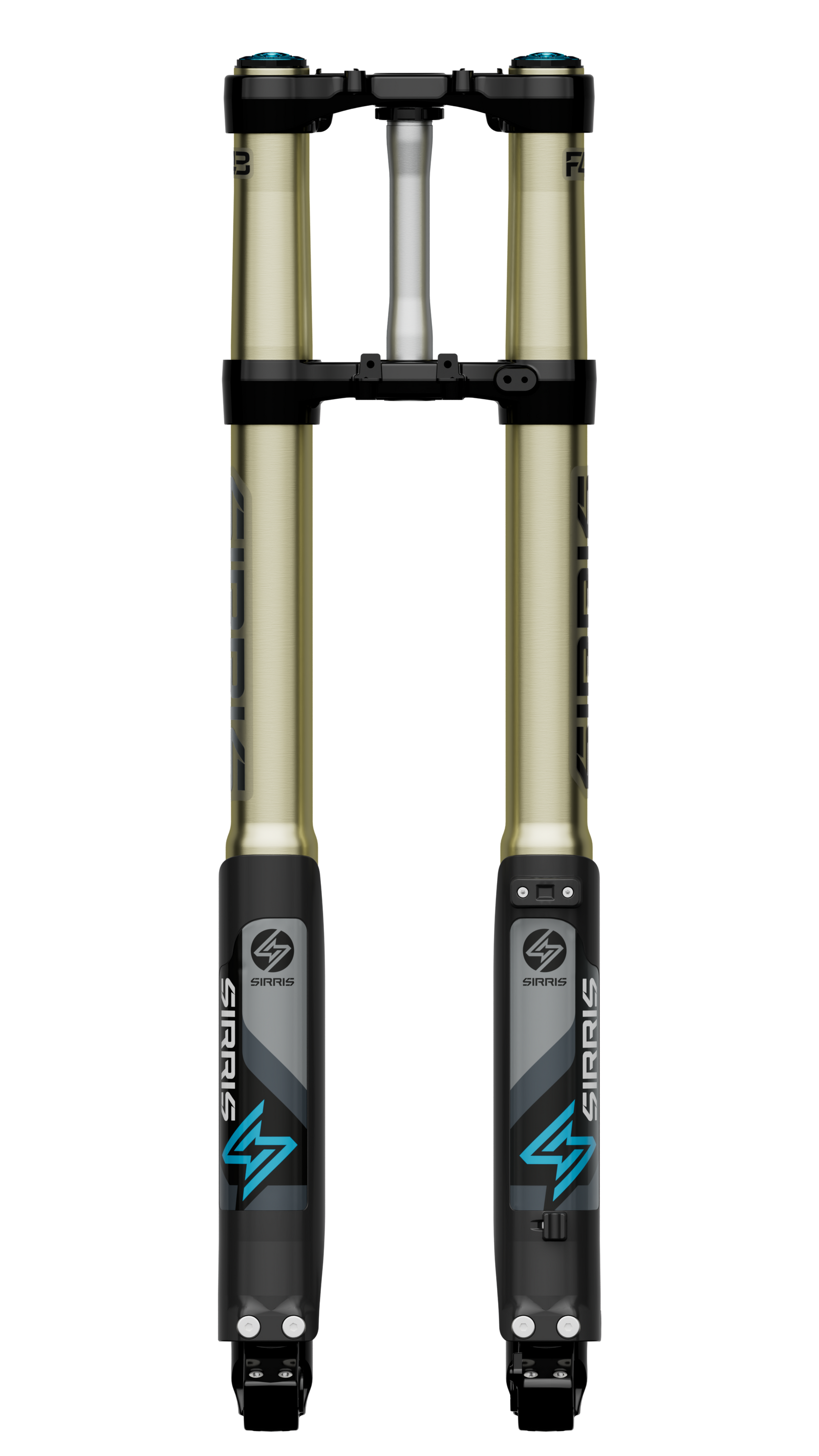

F43 FORK
43MM USD, 856MM X 246MM, 25MM OFFSET, SURRON ULTRA BEE SPEC
|
Architecture
|
Upside down fork
|
|
Travel
|
246 mm
|
|
Free length
|
856 mm
|
|
Fork weight, incl clamps and steerer
|
22 lbs / 10kg
|
|
Stanchions
|
Ø43, chrome-plated steel
|
|
Outer tubes
|
Seamless 7050 aluminum, type 3 hard anodized coating
|
|
Drop outs
|
Forged 6061 aluminum, type 3 hard anodized coating
|
|
Triple clamps
|
Forged 6061 aluminum, type 3 hard anodized coating
|
|
Steer tube
|
Seamless 7050 aluminum, type 2 anodized coating
|
|
Damping
|
Symmetrical, adjustable closed cartridge with spring backed IFP
|
|
Damper bodies
|
Seamless 7050 aluminum, type 3 hard anodized coating
|
|
Rebound
|
Dual side high tensile steel spring, adjustable
|
|
Adjusters
|
External compression and rebound adjustment
|
|
Seals
|
NBR
|
|
Guards
|
High impact PP, 210-degree wraparound
|
