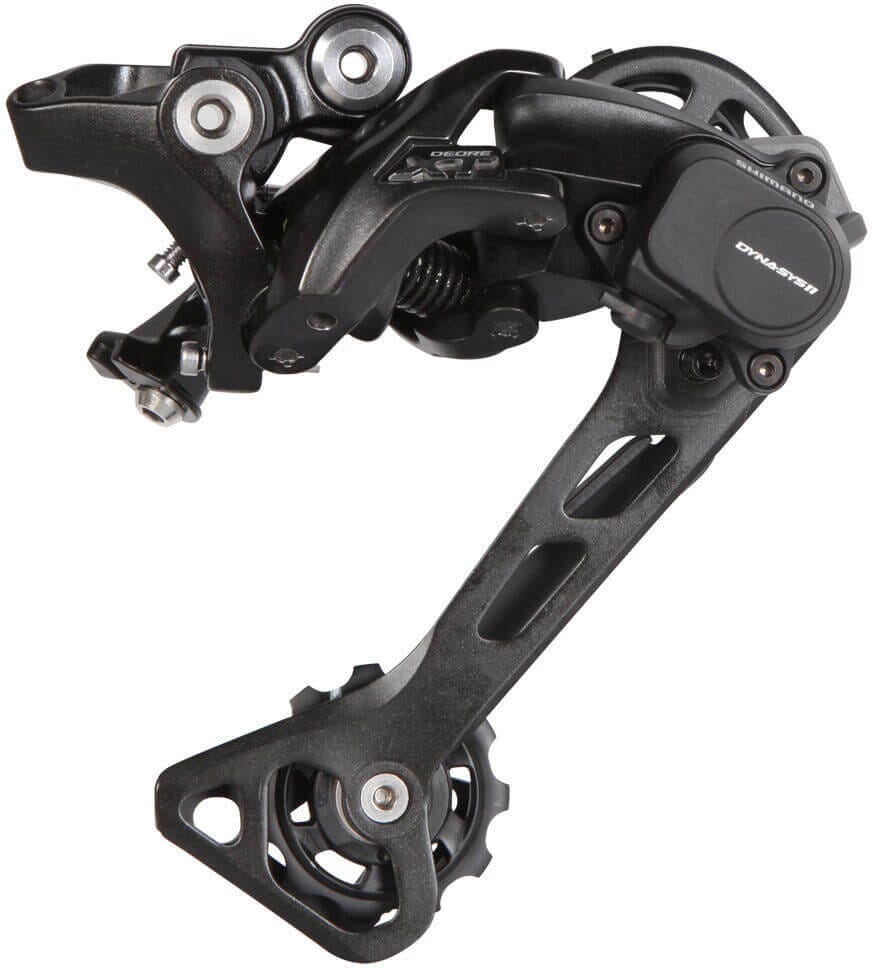

Featuring Shimano's innovative Shadow RD + technology and a refined geometry, the Deore XT M8000 11-speed rear derailleur is designed to reign authority over today's aggressive style of trail and all-mountain riding. By maintaining chain tension, the optimized slant angled Shadow system eliminates chain slap and lowers the chances of dropping your chain. The easy-to-adjust chain stabilizer makes it quick and effortless to dial in the perfect amount of stability for varying conditions and terrain.
The XT M8000 rear derailleur employs a new hyper low-friction coating technology and an improved pulley design with taller tooth pully wheels that greatly lightens up the shift operation, allowing up to 20% less effort.
Specifications
MODEL NO
RD-M8000-GS
SERIES
DEORE XT M8000 Series
Color
Series color
Average weight
271
Remarks
* w/o Bracket spec. available
Compatible chain
HG-X 11-speed
Total capacity
39T
B-axle_Hollow axle
‚úî
B-axle 2_Hollow axle
‚úî
Mount_Direct attachment (Conventional)
‚úî
Mount_Direct mount compatible
X*
Fluoric coated link bushings
4
Low sprocket_Max.
42T(2x11-speed), 46T(1x11-speed)
Low sprocket_Min.
40T
Max. front difference
10T
Pulley_G pulley bearing
Sealed Bearing
Pulley_Sunken type pulley bolt
‚úî
Pulley_Teeth
11T
Pulley_T pulley bearing
Sealed Bearing
Pulley cage
GS
Top-normal spring type_SHIMANO SHADOW RD+
‚úî
Top sprocket_Max.
11T
Top sprocket_Min.
11T
Rear speeds
11
