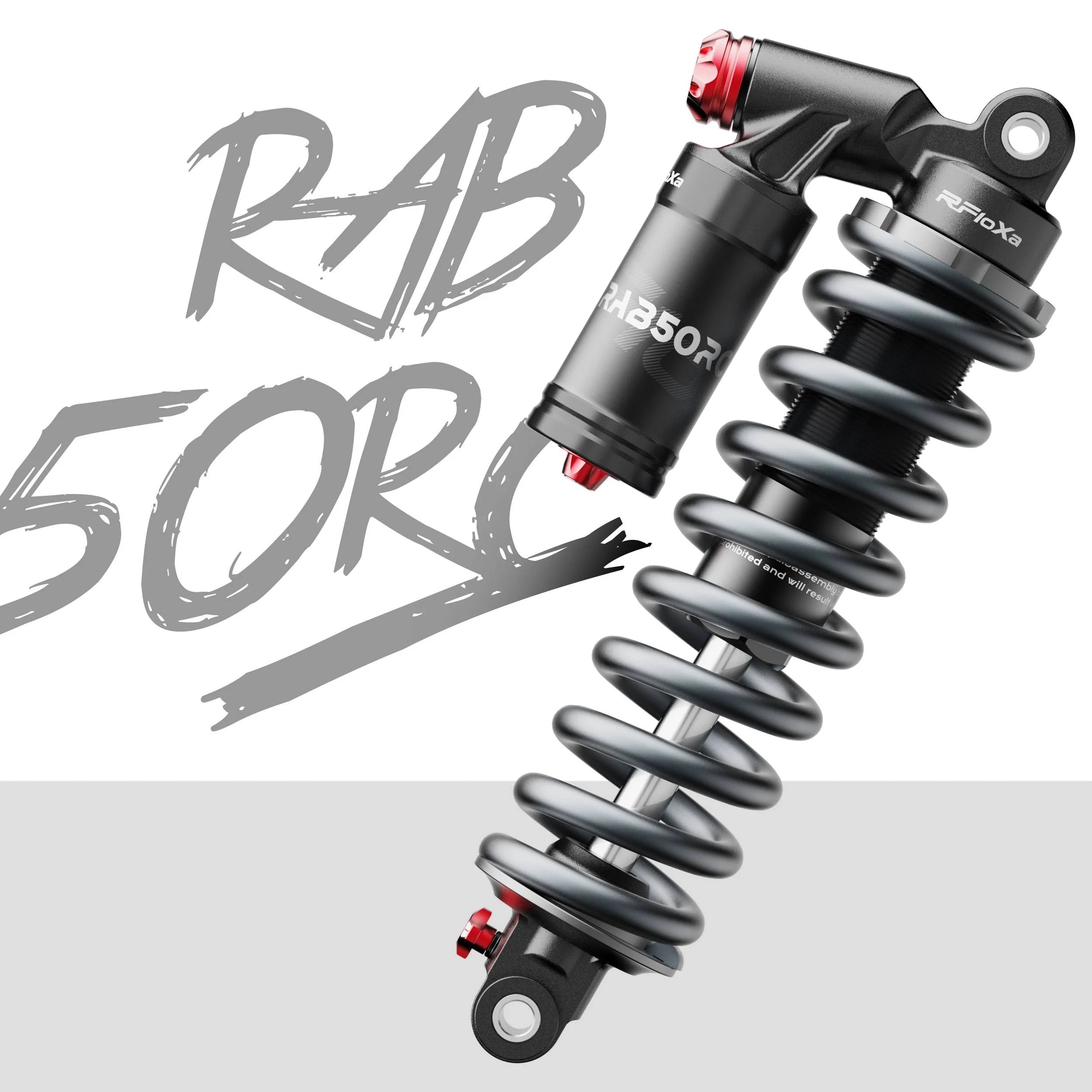

RFLOXA RAB50RC Rear Shock for Surron/Talaria/E-Ride Pro S/SS/SR

NOTE:The spring preload is recommended to be around 10mm, excessive preload will lead to spring deformation resulting in spring side wear phenomenon.

Fitment Bike Length :

265L

• Talaria MX3 / MX4 / XXX / MX5
• Altis Sigma
• E-Ride Pro S / SS 1.0/2.0/3.0/SR
• SurRon LBX, L1E
• 79 Bike Falcon M /  PRO / GT
• Ventus One/ V1+
• Rerode R1
• Rawrr Mantis
• SRPNTMOTO
• Arctic Leopard-Clouded Leopard XE/ XE PRO/ XE PRO S/ XE PRO R

240L

• RFN Apollo (240L)
• SurRon LBS (240L)

Not Fit Bike Model:

• Talaria XXX PRO (Need to grind down a little linkage)

Weight:

• 450lbs spring - 70-100kg
• 550lbs spring - 100kg-125kg
• 600lbs spring - 125-140kg

Adjustments: Rebound / Compression

Features:

• External Nitrogen Reservoir
• Oil-Gas Separation Damping Structure
• Multi-stage Rebound Damping Adjustment
• Multi-stage Compression Damping Adjustment
• AL6061-T6 Forged Upper Mount
• AL6061-T6 Aluminum Alloy Main Tube
• 42CRMO Main Shaft
• 55CRSI Spring Wire
• C-ring Retainer Spring Base for Stability During Riding
• Easy-to-remove Spring Design
• Fine and Smooth Rebound and Compression Damping Adjustment, with noticeable feedback at each stage
• Rubber Bladder in the Air Chamber for Reduced Heat Fading of Damping and Enhanced Shock Absorption for Small Bumps
