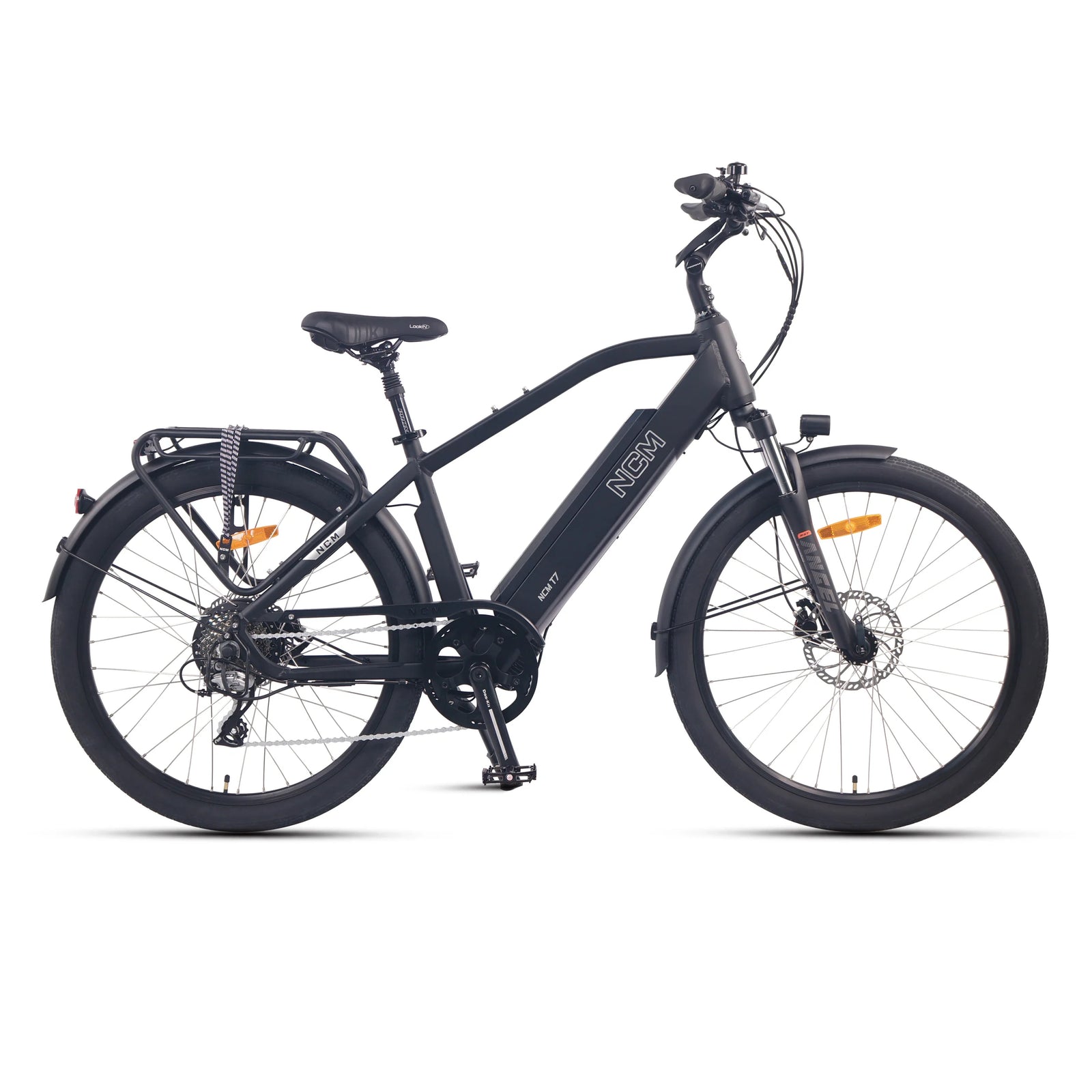

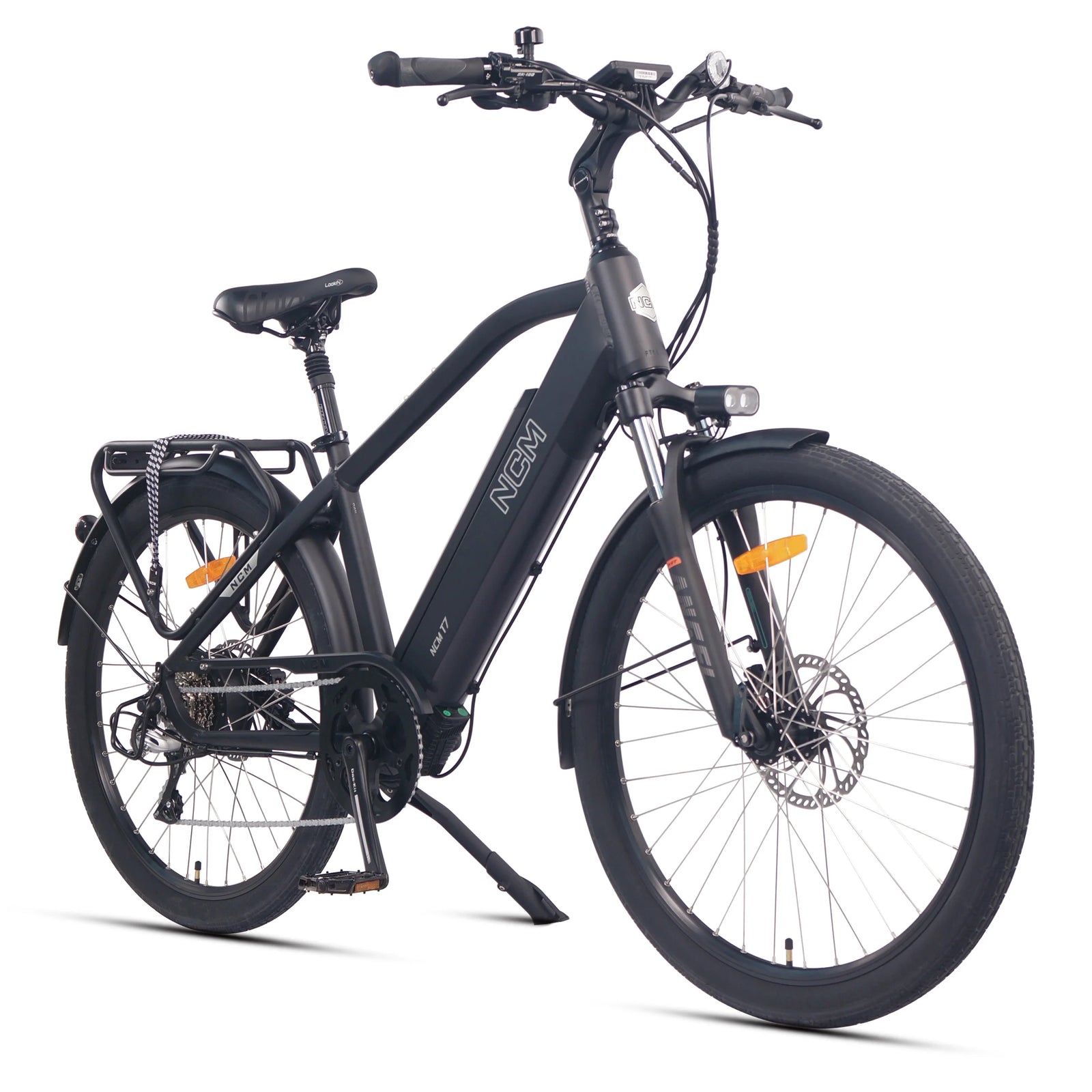

Balancing accessibility with superior specifications, the NCM T7 is a e-trekking bike for riders who are eager to tackle longer routes alongside their daily rides and want an e-bike with the range and the integrity to help them do it.
ELECTRIC COMPONENTS
Battery: Das-Kit, i7-4819, 48V 19AH, 912WH, with TAG Technology
Motor: Das-Kit, X15, rear-drive motor, 48V 250W, 25KM/H
Controller: Das-Kit, T7, 48V 18A
Charger: Das Kit, 48V 3A
Display: Das-Kit, C8, with USB

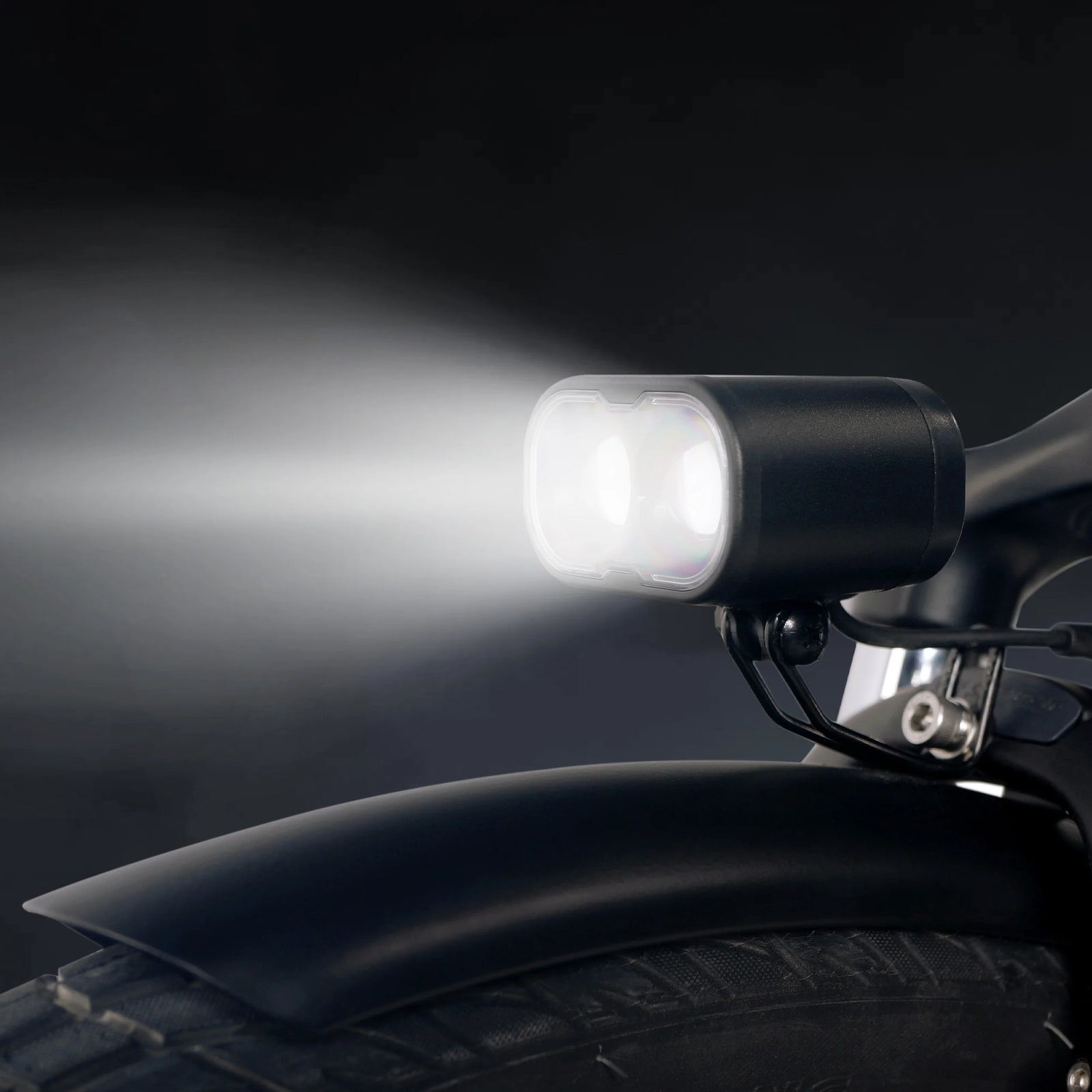

Front Light: LED, 48V, 70Lux
Rear Light: LED, 48V
BIKE COMPONENTS
Frame: Alu. 6061, 26x430mm, Alu. 6061, 28x460mm
Suspension Fork: RST, ANGEL-TNL 26, with hydraulic lock system, Magnesium
Brake: Das-Kit, left: DK-100E, hydraulic brake lever with brake sensor, right: DK-100, hydraulic brake lever
Freewheel: 8 Speed, 11-32T
Tyre: 26x2.0, 28x2.0
Saddle: Selle Royal, Lookin, Black
Stem: Promax, MA-579
Crank: Das-Kit, 46T
Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed
Rear Derailleur: Shimano, Acera, RD-M360
Chain: KMC, Z8.3RB, Silver
WEIGHT
Weight (without battery): 25KG
Battery Weight: 4.8KG
Max Load (rider+bike): 140KG
