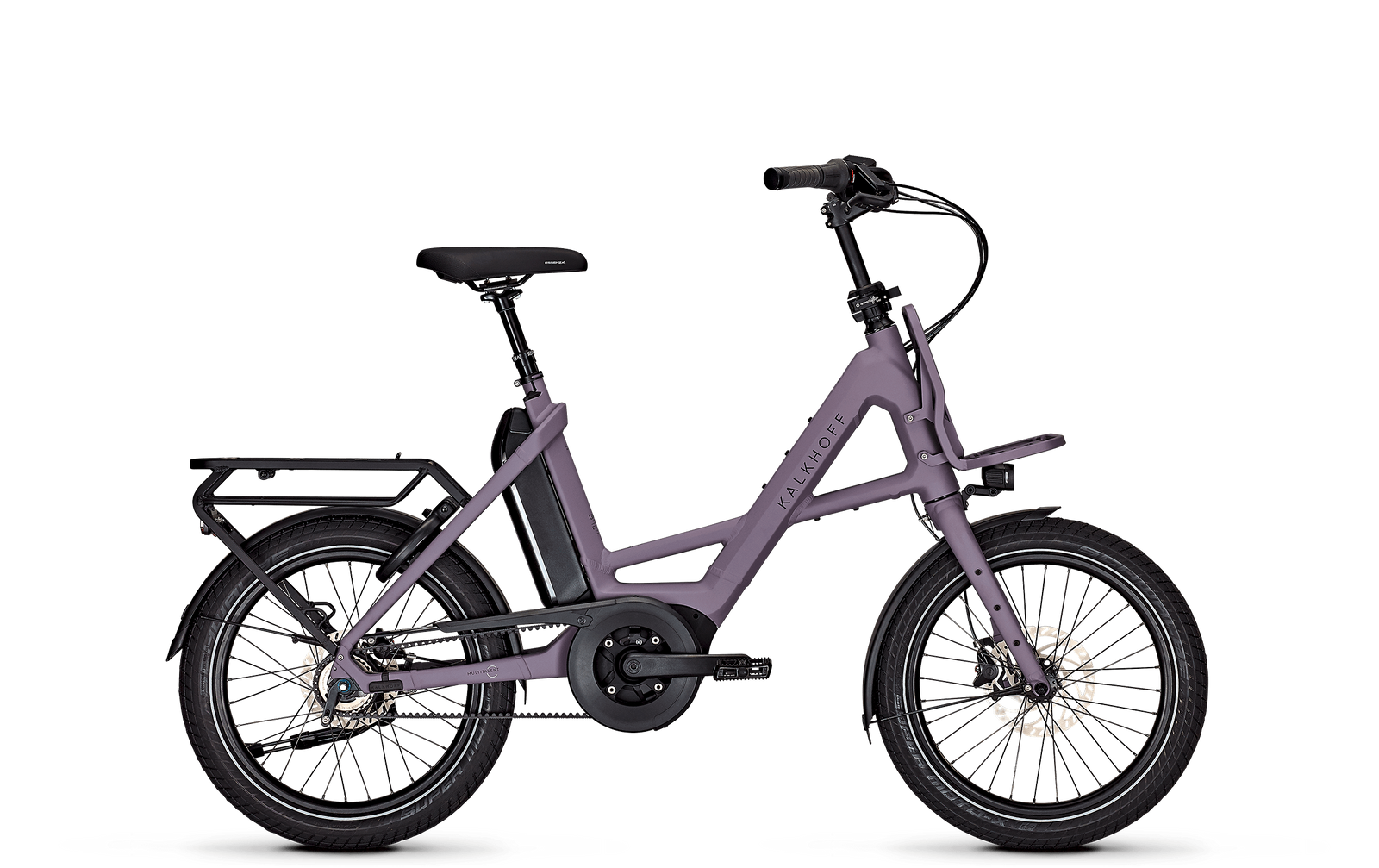

Kalkhoff C.B Compact Electric Bike - Belt Drive
Click to open expanded view

Kalkhoff C.B Compact Electric Bike - Belt Drive

Price
$5,999
Tax included. Shipping calculated at checkout.
Colour: Midnightplum Matt
In stock and ready for shipping
American Express
Apple Pay
Google Pay
Mastercard
Shop Pay
Union Pay
Visa
Bitcoin
Details

Kalkhoff IMAGE C+ ADVANCE - 2025

  • Compact all-rounder with 20 inch tyres and carrying handle
  • Comfortable urban riding thanks to adjustable seat post and belt drive
  • Plus+: Flexible all-rounder with a permissible total weight of up to 170 kg
  • Range up to 90 km*
Specifications
Motor Bosch Performance Line Smart System (75 Nm)
Motor Torque 75 Nm
Battery Bosch PowerPack Li-Ion 36V / 14.4 Ah (545 Wh)
Battery Ampere Hours 14.4 Ah
Battery Watt-hours 545 Wh
Display Bosch Purion 200 color display with walk assist
Sitting Position Upright
Drive Type Belt
Rear Derailleur Shimano Nexus, 5-speed
Number of Gears 5
Type of Gear Shift Hub
Sprocket Cassette Gates Carbondrive CDX
Chain Gates Carbondrive CDX
Gear Ratio Front: 46, Rear: 28
Brake Type Hydraulic Disc Brake
Front Brake Disc 180 mm
Rear Brake Disc 160 mm
Tyres Schwalbe Super Moto X, 62-406
Wheel Size 20 inch
Wheel Diameter / Size 48
Rims Aluminium, hollow section, eyelets
Crankset Aluminium
Handlebars Tour, Aluminium
Handlebar Grip Ergon GC10
Stem By Schulz Speedlifter Twist
Saddle Selle Royal Essenza Plus
Seat Post Aluminium, dropper post, suspension
Fork Aluminium, rigid
Fork Length 330
Fork Travel 45
Front Pannier Rack Urban front carrier, aluminium
Pannier Rack MIK HD Rear Carrier, max. load 27kg
Stand Rear stand, adjustable
Headlight Herrmans MR5, LED
Rear Light Herrmans H-Trace, LED
Mudguards Plastic, with edge protector
Pedals Comfort, Aluminium
Weight Incl. Battery 27 kg
Bike Max System Weight 170 kg
Top Tube Length 580
Steering Angle 70 degrees
Seat Angle 70.5 degrees
Bottom Bracket Drop 32
Head Tube Length 220
Wheelbase 1093.6
Stack 528.64
Reach 392.8
