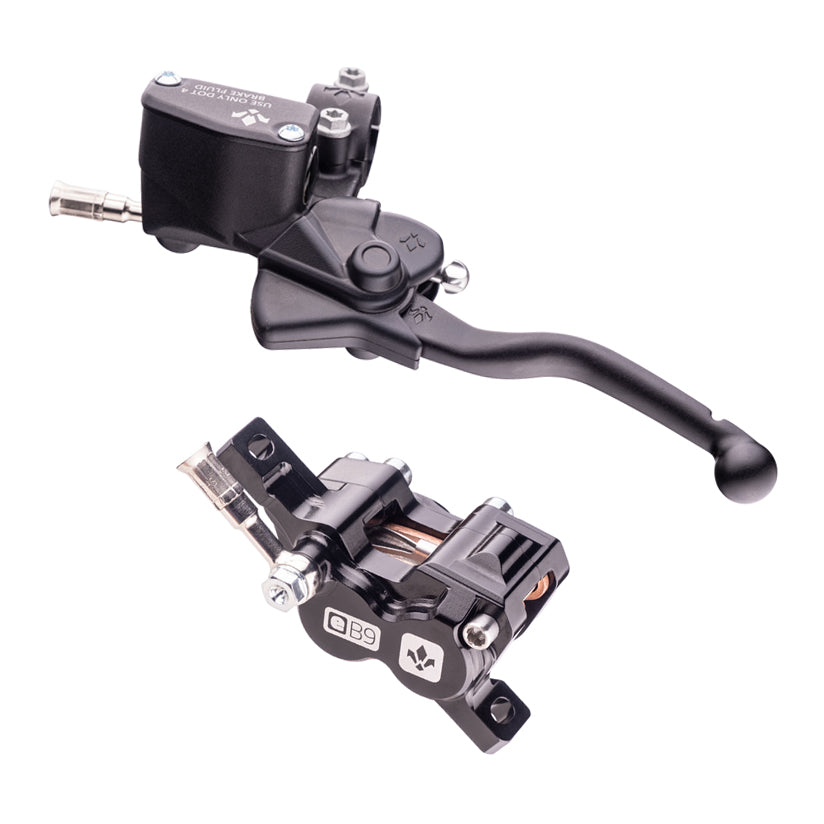

Formula EB9 E-Moto Brakes Complete Set 95.5mm — Talaria MX5 and Altis Sigma

Engineered for the next generation of high-output lightweight e-motos, the Formula High-Spec Brake System provides maximum thermal stability and stopping power for larger, faster platforms.

Crafted and manufactured in Italy, this system features a wider CNC-machined caliper body constructed from aeronautic-grade 7075 aluminum. This design offers increased fluid capacity and a larger footprint for superior heat dissipation during aggressive riding. The heavy-duty 4-piston configuration (4x22mm front / 4x22mm rear) ensures massive bite and precise modulation, even on the most demanding terrain.

Designed specifically for bikes with larger mounting requirements, this system supports 90mm, 95.5mm, and 99.5mm platforms—providing a professional-grade solution for the latest high-spec models like the Talaria MX5 and E-Ride Pro 3.0. Paired with forged aluminum master cylinders and thicker sintered pads, it delivers a rigid, consistent lever feel and long-term reliability for elite performance.

Vehicle Compatibility

• High-Spec Mounting: Designed for platforms with specialized larger brake mounts.

• Mounting Sizes: Available in 90mm, 95.5mm, and 99.5mm configurations.

Technical Specifications

• Caliper Design: Wider-profile, CNC-machined Aeronautic Ergal 7075 aluminum body with a black anodized finish.

• Piston Configuration:

  • Front: 4 x 22mm Phenolic pistons.

  • Rear: 4 x 22mm Phenolic pistons.

• Master Cylinder & Lever: Forged and anodized aluminum body; includes an adjustable, black anodized ball-end forged aluminum lever.

• Brake Hoses: Steel braided with a PTFE inner liner.

• Brake Pads: Thicker high-performance sintered pads.

Mounting & Rotor Compatibility

• Mounting Type: Post Mount (90mm / 95.5mm / 99.5mm).

• Rotor Diameters: Compatible with 220mm, 240mm, 250mm, and 260mm.

• Maximum Rotor Thickness: 3mm.

• Fitment Note: Fits 220mm rotors natively (no adapter required); supports up to 260mm with appropriate adapters.

Suitable Bikes

• 90mm Mount: Arctic Leopard EX Pro S / Enduro

• 95.5mm Mount: Altis Sigma / Talaria MX5

• 99.5mm Mount: E-Ride Pro 3.0 / E-Ride Pro SR

• Any compatible high-spec larger mount platform.

The Formula High-Spec System is braking designed for the extreme edge of electric performance — delivering unmatched power, consistency, and control.
