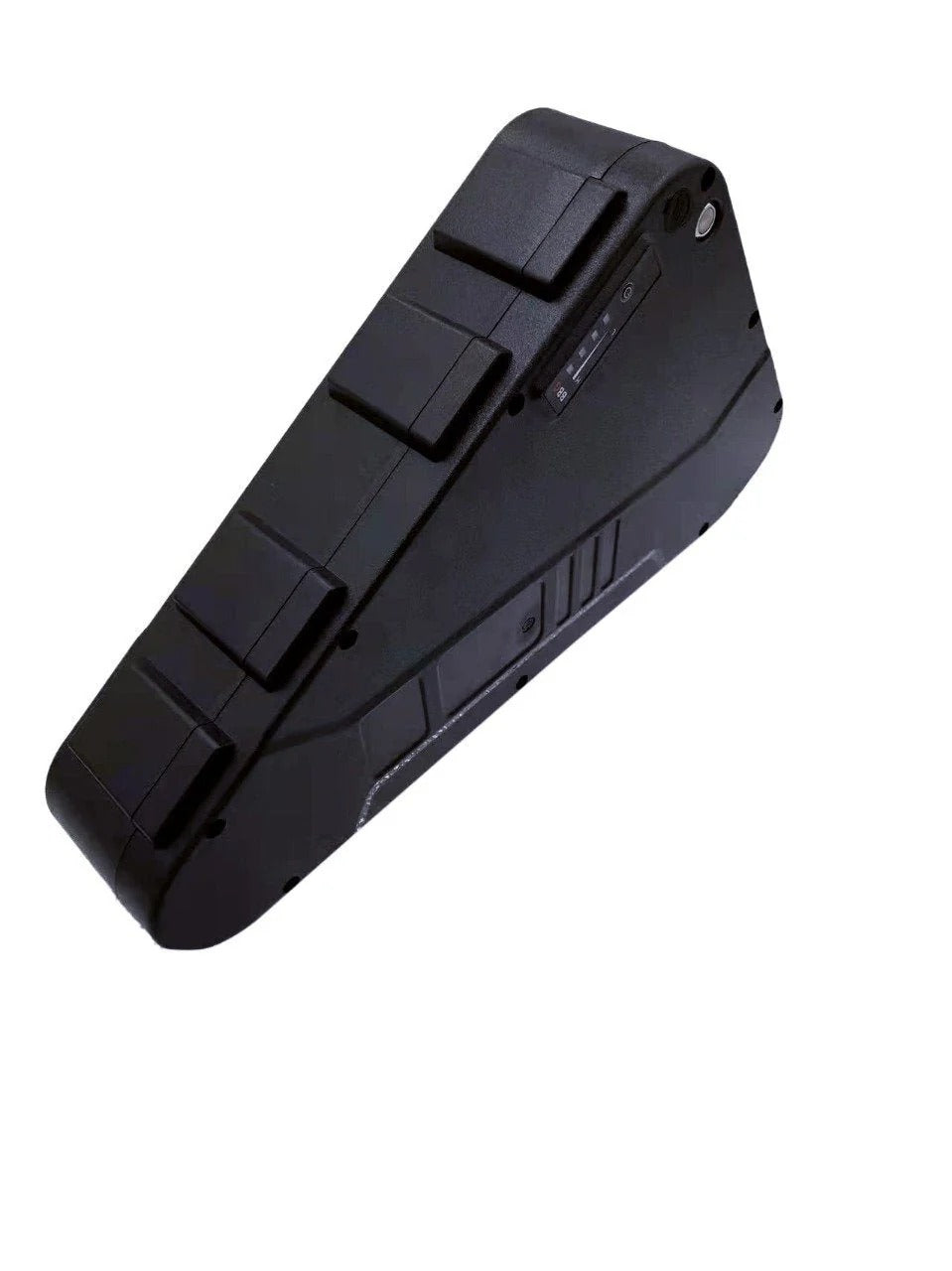

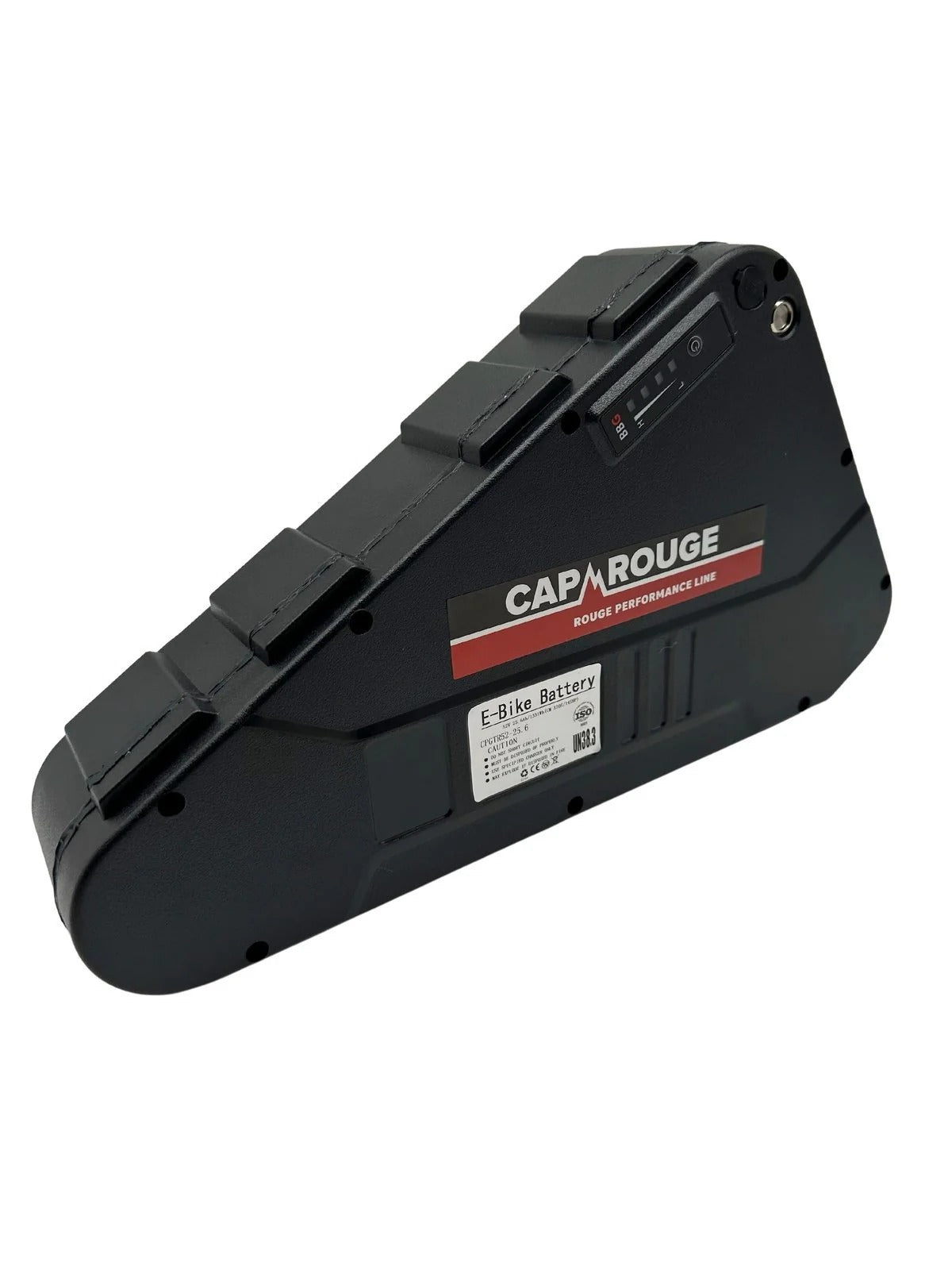

72V 20Ah Triangle E-Bike Battery Incl 5A Charger

72 Volt Triangle Battery

20 Ah / 1440 Wh

1440 Wh

Samsung 50S 21700 5000Mah High Discharge 21700 Cells

80A Continuous Discharge BMS - 5760 Watts continuous maximum

3A, 1-5A Variable Battery Charger Options.

Dual Charging - XT90 Female and ST3 3 Pin Charger Options

Removable Branding

Multipurpose battery, Compatible with Bafang, CYC Motor, Hub Motors and More

Overall Dimensions: L 380mm - W 76mm - H 215mm

Built to Cap Rouge specifications, this battery is suitable for bikes with motors up to and including 5760W

High quality, long life battery built using 21700 cells

This battery is one of Cap Rouge specialties. We are the first Australian reputable company to use top line 21700 cells. This battery is for long life and high performance.

All cells used in our batteries are 100% new and tested to International Electrotechnical Commission (IEC) standard 62133-2-2017 or 2012, beware as many Australian suppliers do not mention the brand of cell used

• 72 Volts
• 20 Ah
• 1440 Wh
• 20S4P
• Overall Dimensions: L 380mm - W 76mm - H 215mm
• Weight 7.1kg Excluding Charger
• Samsung 50S 21700 5000Mah cells, tested to EN62133-2-22017
• 3A, 1-5A Variable Battery Charger Options

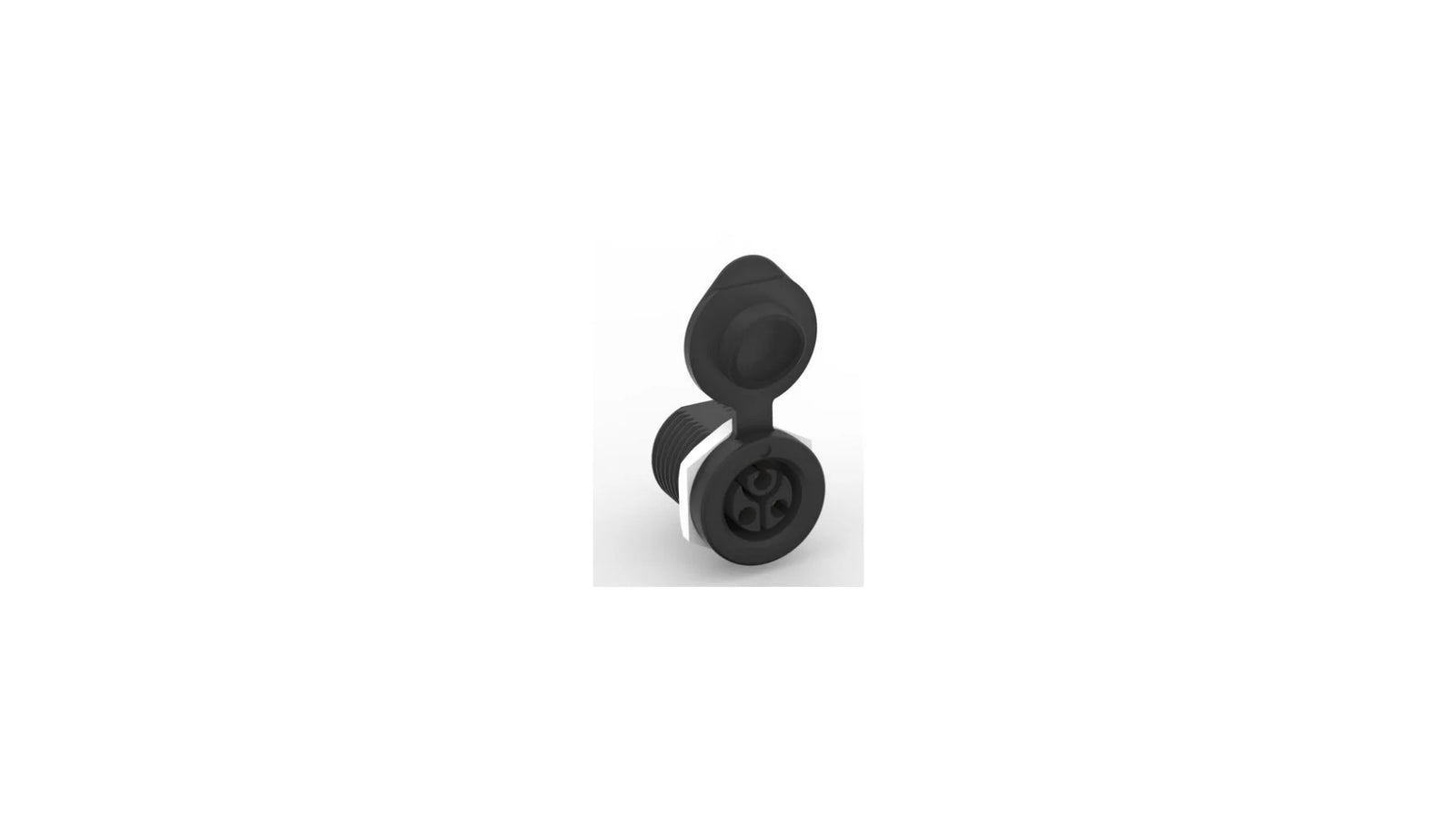

• Dual charging - XT90 Female and ST3 charging port
• maximum charge input ST3 = 5A / maximum charge input XT90 = 10A
• Charge/Discharge cable with XT90 Female connector
• 80A continuous discharge, suitable for motors up to 5760 Watts
• Cell sorting and balancing during production
• Output XT90 Male to XT90 Female
• Battery Management System (BMS)

1. Charging voltage
2. Balance voltage for single cell
3. Current consumption
4. Maximal continuous charging current
5. Maximal continuous Discharging current
6. Over charge Protection
7. Over discharge protection
8. Over current protection
9. Short protection
10. Resistance Protection
