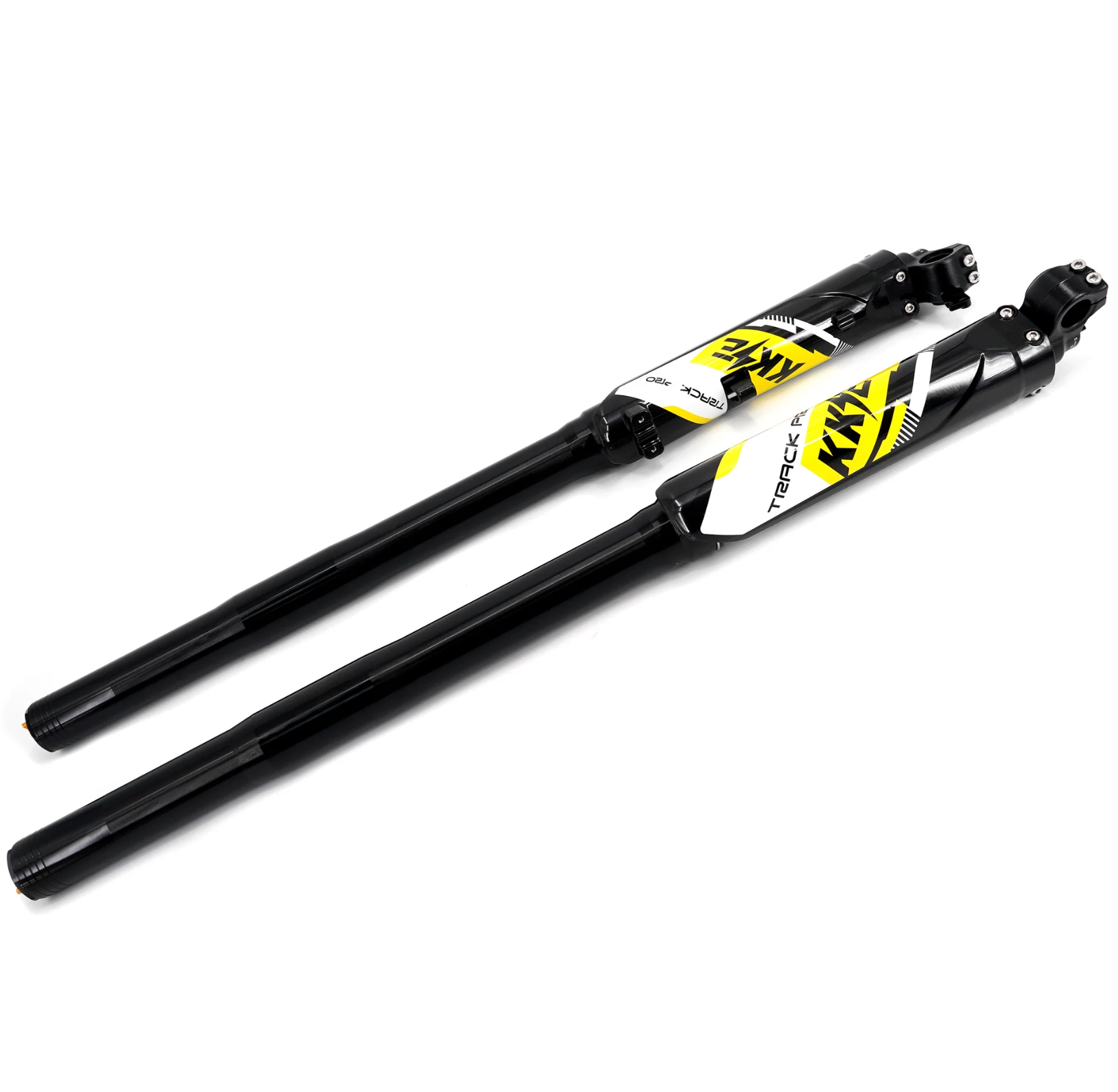

KKE 37MM Upgraded 6.0 Version Closed Cartridge Front Suspension Fork Fit Surron Ultra Bee

Key Specs:

• Length: 850mm
• Weight: 6.3kg (excluding triple clamp)
• Travel: 235mm
• Stanchions: 37mm Aluminum Alloy
• Axle: 20*24mm
• Triple Clamp: 46x50mm
• Spring Rate: 22lbs/side (44lbs total) - Recommended for 70-85kg riders
• Adjustments: 18 +/- 2 Gears (Compression/Rebound)
• Floating Spring: 60lbs/side
• Outer Tubes: 7050-T6 Anodized Aluminum (Black)
• Dropouts: 6061-T6 Anodized Aluminum (Black)
• Damping: Symmetrical, Closed Cartridge (SKF Seals)

Key Features:

• Enhanced Comfort & Performance: Long 235mm travel absorbs impacts for improved comfort and reduced bottoming out.
• Premium Durability: High-strength 7050-T6 aluminum outer tubes and 6061-T6 aluminum dropouts with anodized finishes.
• Consistent Performance: Closed cartridge damping with SKF seals and internal floating piston for stability and contaminant protection. Symmetrical construction for balanced handling.

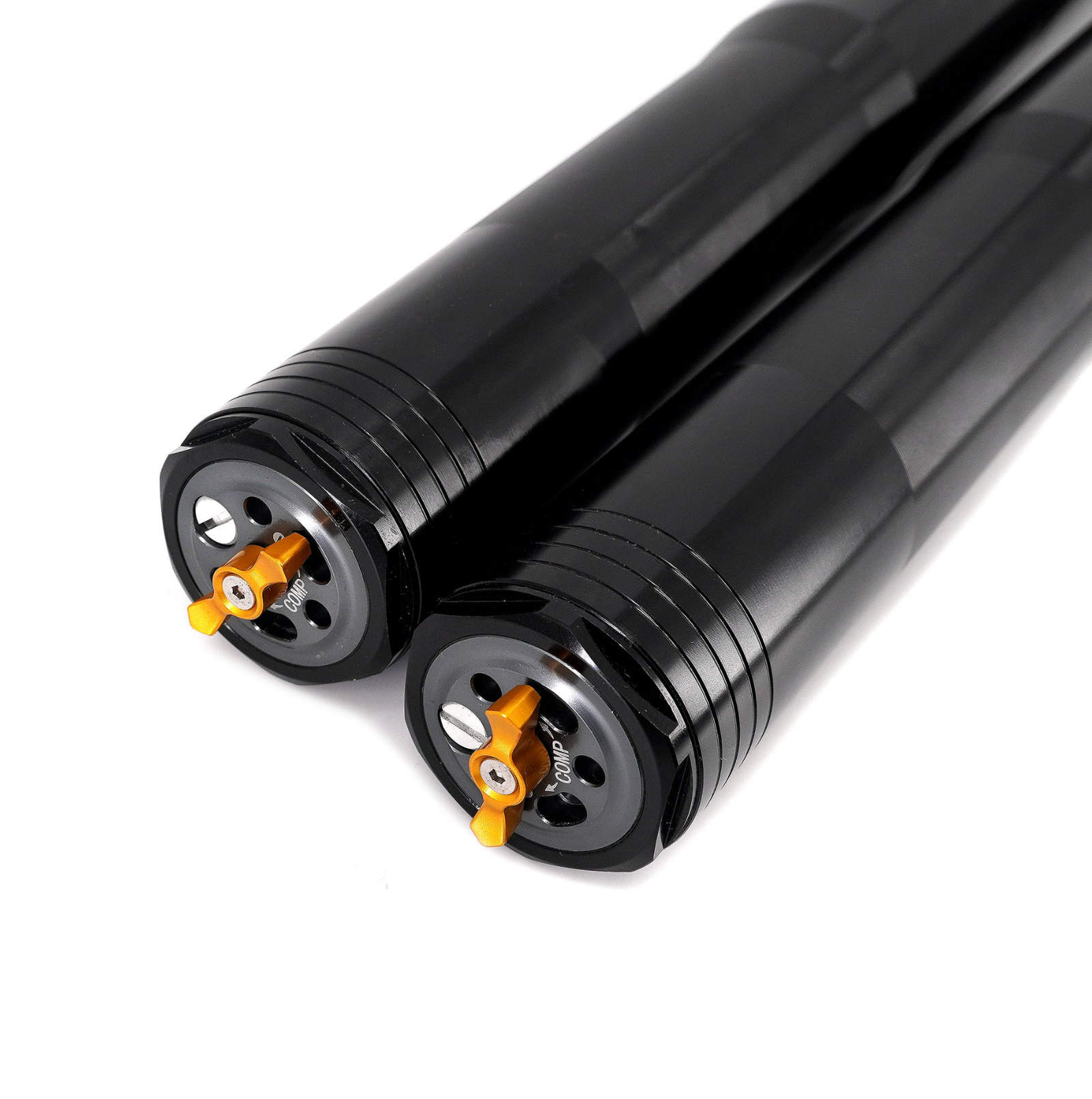

• External Adjustability: Easy-to-use knobs for fine-tuning compression and rebound to suit riding style and terrain.
• Advanced Upgrade: Dual-chamber structure for precise damping, impact/heat resistance, and superior contamination protection. Compression (top), Rebound (bottom).

Rider Recommendation:

• 44lbs Spring (22lbs/side) for 70-85kg riders. Contact us for alternative spring rates.

Recommended Usage:

• Complex Roads: Rebound 0-6, Compression 0-6
• Professional Tracks: Rebound 6-12, Compression 6-15
• Special Terrain: Rebound 12-18, Compression 15-18

Important Notes:

• Use only original KKE parts.
• Professional installation recommended.

Fitment:

• Surron Ultra Bee

Color:

• Black

Maintenance:

• Pre-Ride: Check for damage/leaks, ensure proper torque, verify brakes.
• Regular (50 hrs): Clean external surfaces/seals, check/replace oil.
• Deep (200 hrs/Annually): Disassemble/clean internals, replace seals/rings, re-lubricate.
