Product information
The EBMX XLB-60 Motor is a Plug and Play replacement for the OEM SurRon Light Bee Motor.
The price includes an EBMX Custom Bash Plate that will fit perfectly with your motor, you can find a full description of the product below.
These Motors are only Guaranteed to work with the X-9000. We cannot guarantee compatibility with any other controller.
| XLB-60 Motor (Light Bee) Specifications | |
| PEAK POWER | 35000W |
| VOLTAGE RANCE | 48v – 104v |
| MAX TORQUE | 52Nm |
| MAX STABLE ROTOR RPM | 13000RPM |
| MAX EFFICIENCY | 93% |
| MOTOR CONFIGURATION | 10 poles and 12 slots |
| WINDING TYPE | Dual Y parallel connection |
| STATOR AND ROTOR STACK THICKNESS | 60MM |
| SENSING METHOD | NJDC 605 Encoder |
| KV Value | 95KV |
| Rated power | Air cooled: |
| 13,600W(Continuous run for 28 mins) | |
| 24,000W(Continuous run for 2 min 20 seconds) | |
| Water cooled: | |
| 26,000W(4 min 30 seconds) | |
| Warranty | 2 Year |
| Max Phase current | 900A |
| Rated Phase current (Continuous run) | 500A (28Nm) |
| Motor temperature | 180 deg C windings |
| 140 deg C start limiting | |
| 160 deg C power cut | |
| Waterproofing | IP67 |
| Anti-corrosion | Yes |

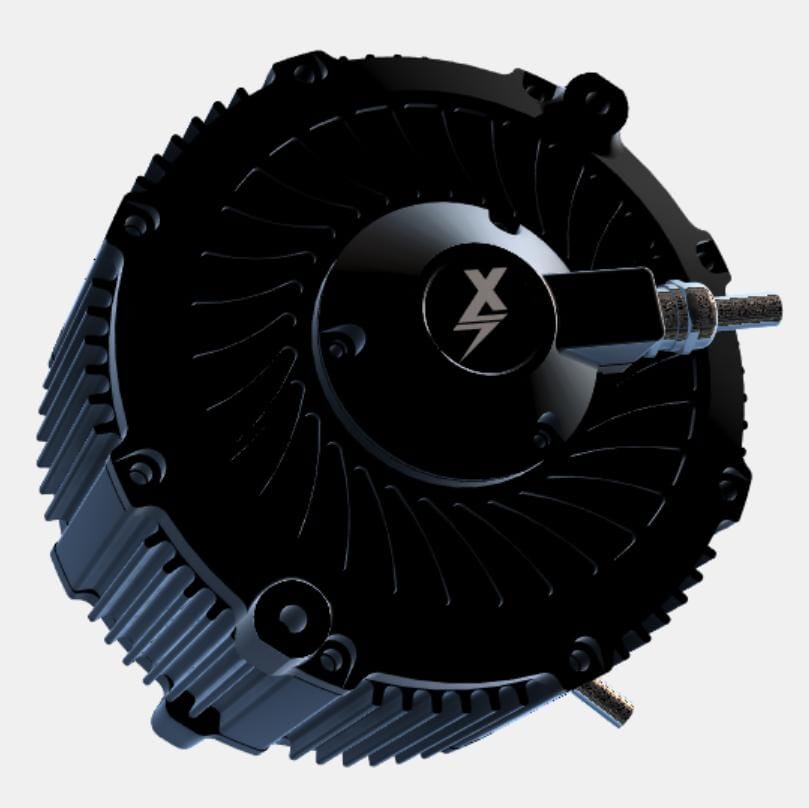

| Colors | Black with Black End Cap |

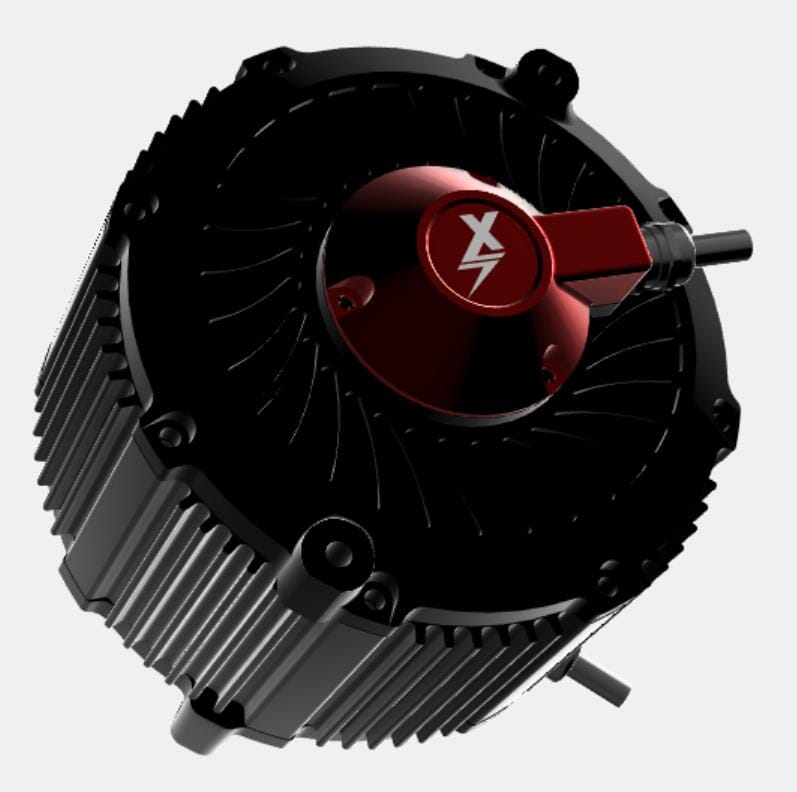

| Black with Red End Cap | |

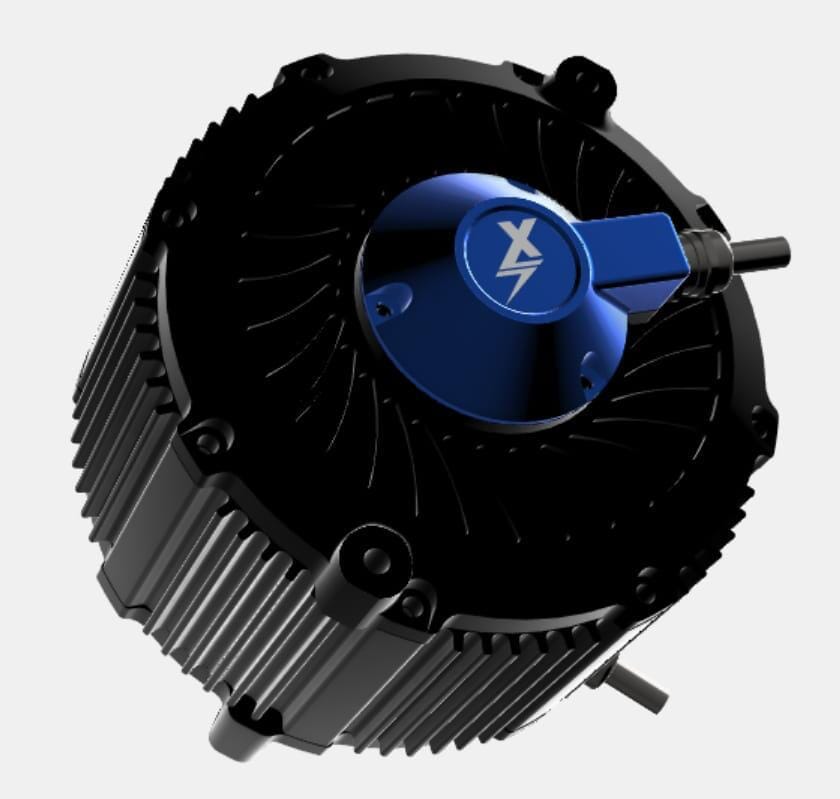

| Black with Blue End Cap | |

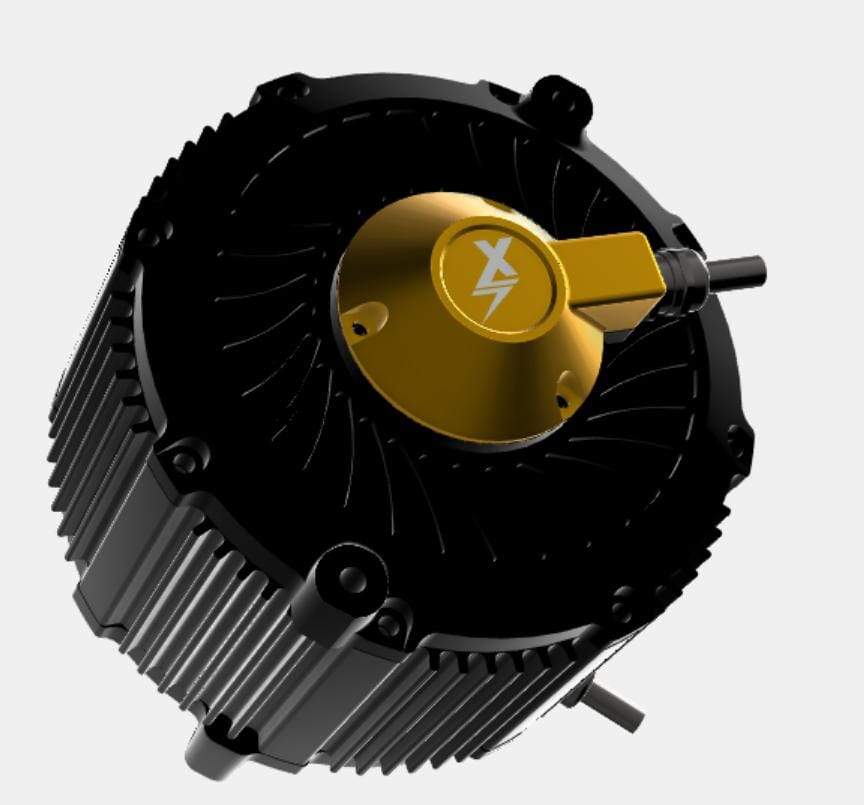

| Black with Gold End Cap | |

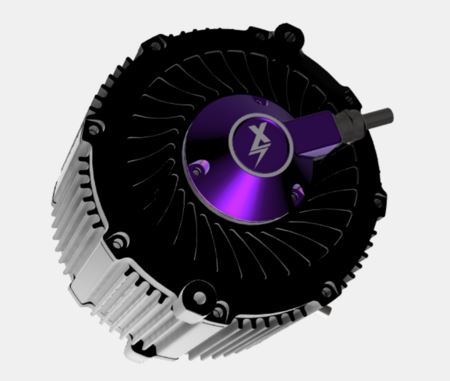

| Black with Purple End Cap | |
| Weight/Size | Air cooled: |
| OD181.5mm*L118mm 11.2KG | |
| Water cooled: | |
| OD187mm*L118mm 12.5KG | |
