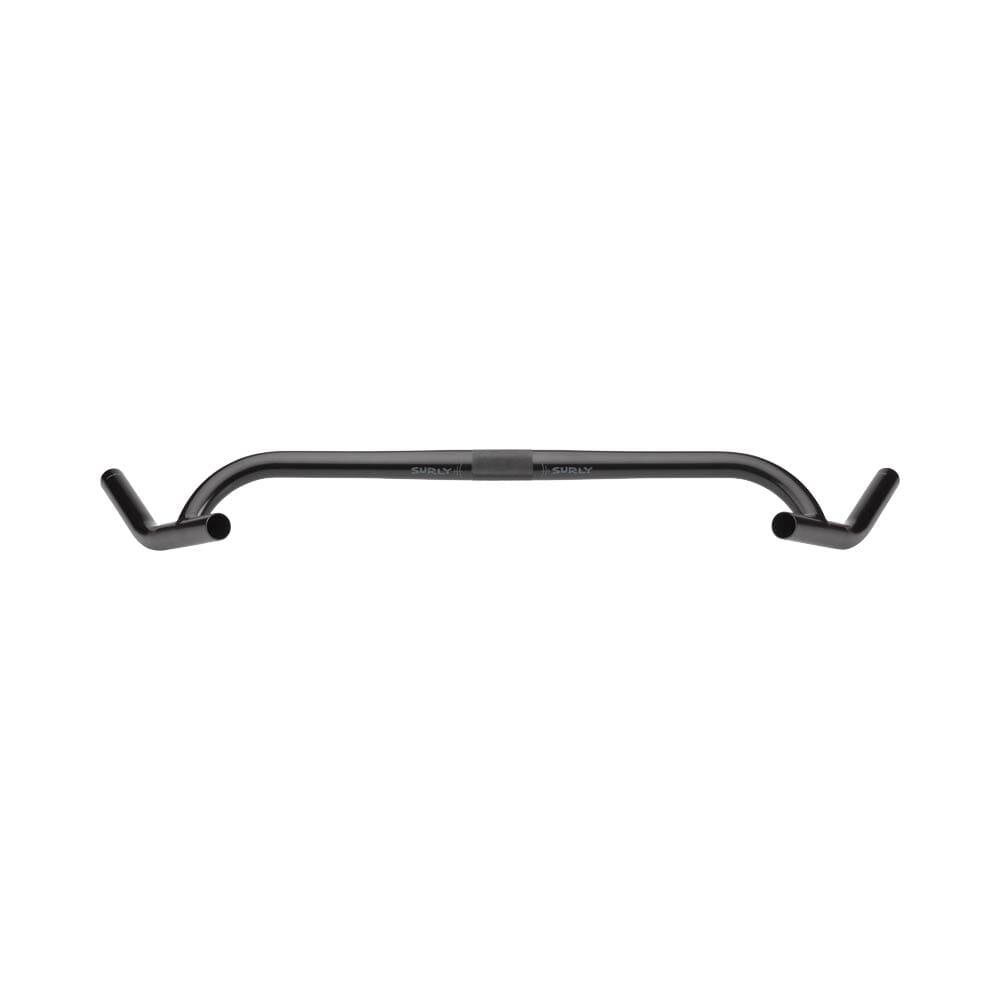

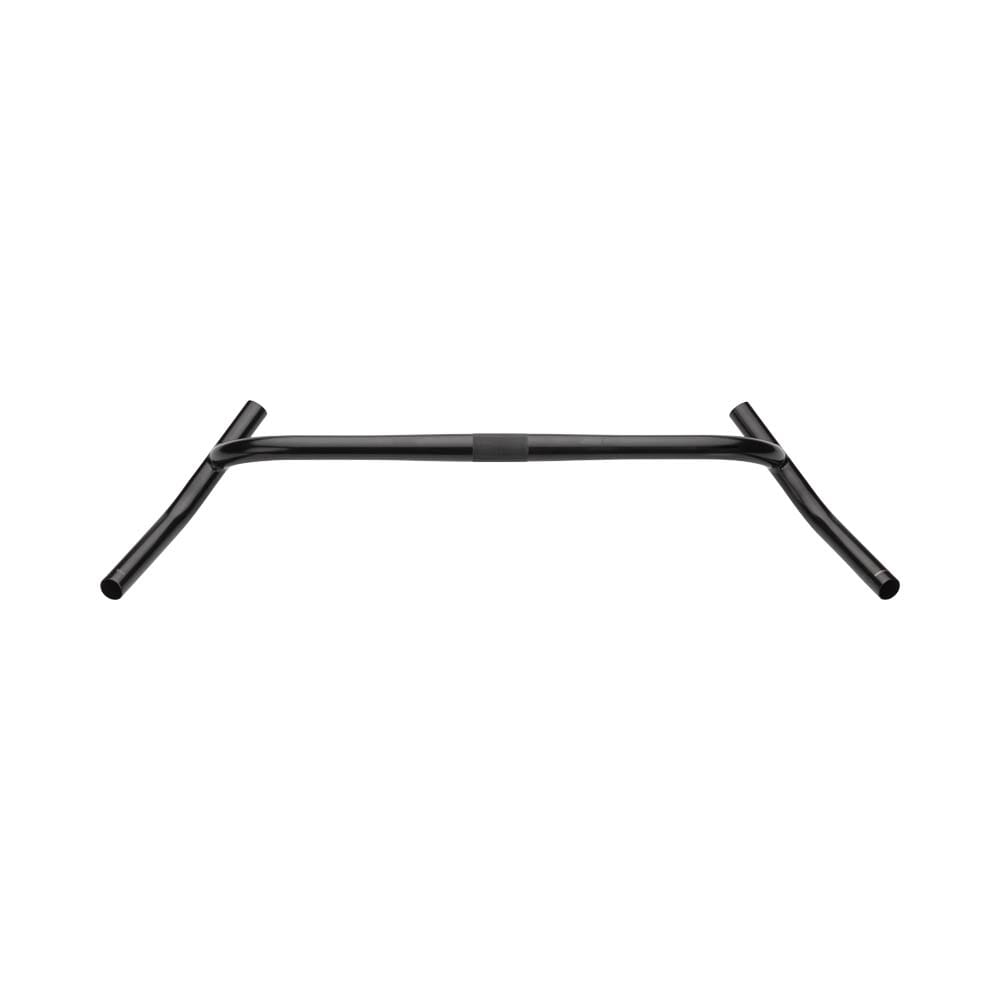

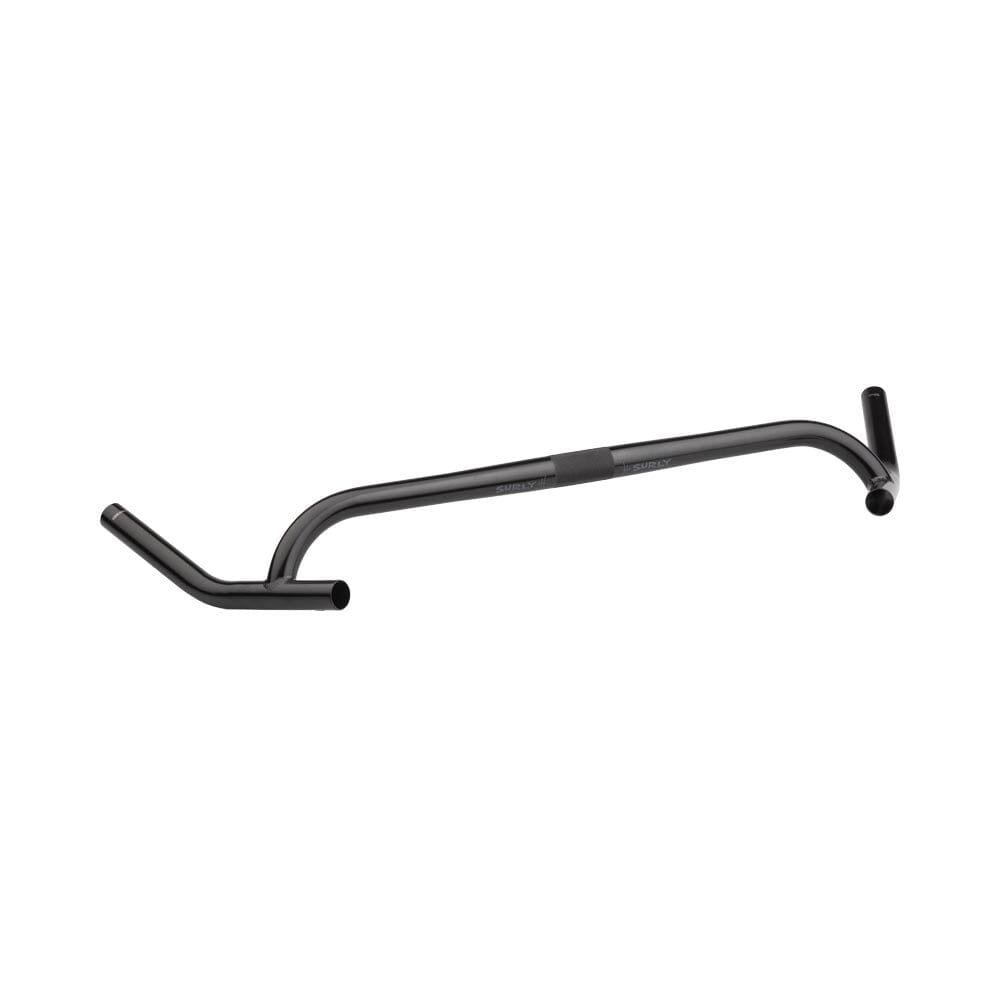

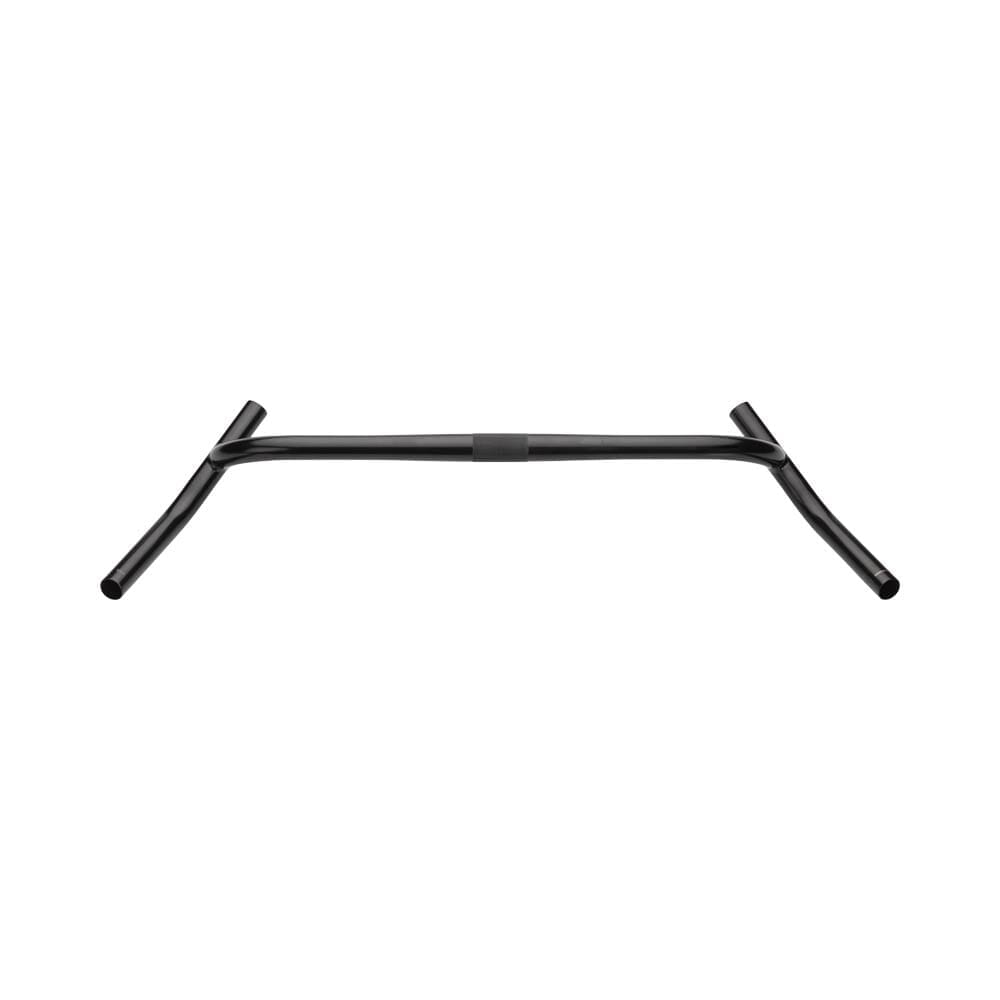

Surly Corner Bar Handlebar

Used to be if you wanted to throw drop bars on your off-road rig, you had to fork over your allowance for a new drivetrain and brake levers. We made the Corner Bar so you could conduct all your dirt-drop experiments with your current brake and drivetrain setup. I mean, why spring for the whole buffet when all you want is a salty snack at the bar?

Anyway, we made this one out of Chromoly. We’re also including a set of shims. If you don’t need ‘em, stick ‘em in a drawer for later. You call the shots, Boss.

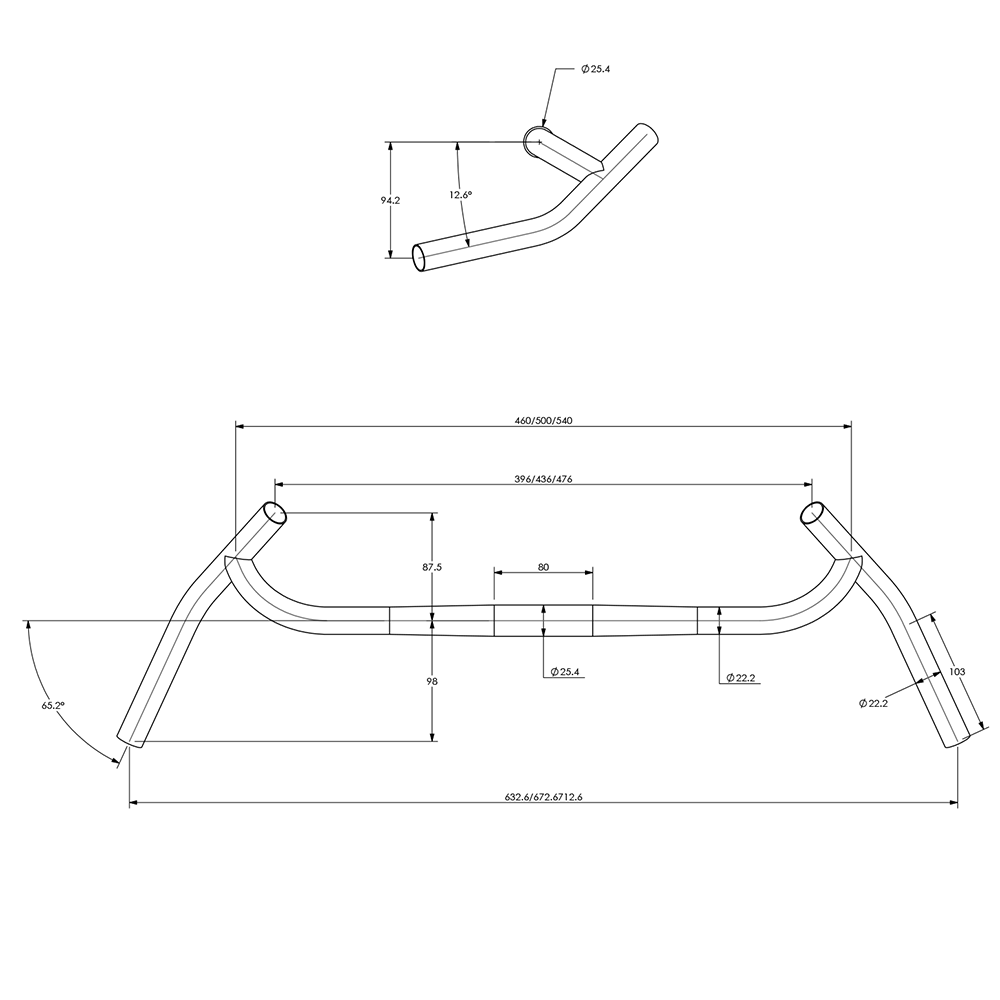

Specifications:

Material: Chromoly
Clamp Diameter: 25.4mm
Brake Lever Compatibility: Mountain 22.2mm
Drop Bar Equivalent Width: 46cm
Drop Bar Flare: 41.4 degrees
Bar Drop: 94mm
Sweep Angle: 65.2 degrees
Color: E.D. coated black
