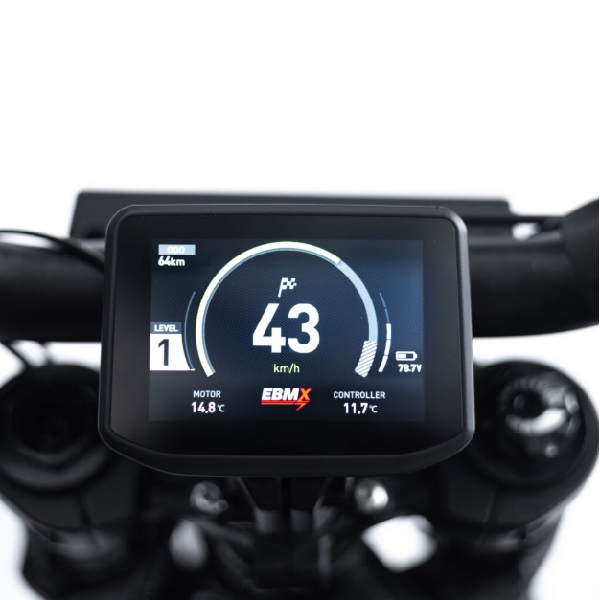

EBMX BC351 Display for X-9000

The New EBMX Large Display works with the X-9000 Motor Controller and replaces the SW102 smaller type display.

The Display will work with any X9000 V2 on any motor or battery combination. Due to the canbus communications the display works much faster and accurate then the UART communications of the SW102.

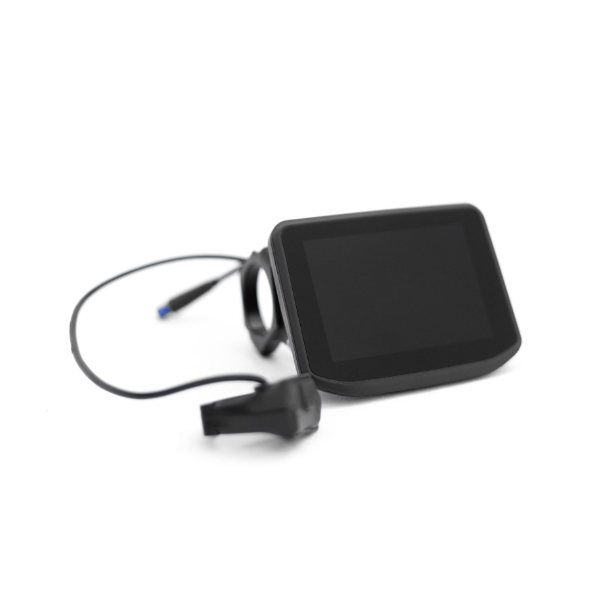

Base kit

• CNC mounts for MTB and Moto Bars (31.8 and 28.6)
• New canbus 2-1 cable included
• No setup required just install (830 and up firmware required)
• 3.5 Inch TFT display
• IP67
• New mode button included
• Display to button cable length 350mm
• Display to canbus connector length 250mm
• All new EBMX UI with ride data

Optional case can be purchased here.

Please note that although display is CAN Bus controlled directly from the X9000 and it will install into an Ultrabee, it is not directly plug and play for Ultrabee R with indicators or head lights etc. So although you may chose to use this on an Ultra Bee R, you would not be able to see indicators on/cancelled etc. We feel that may not be safe and as such we do not recommend it for that particular use at this time. September 2024.
