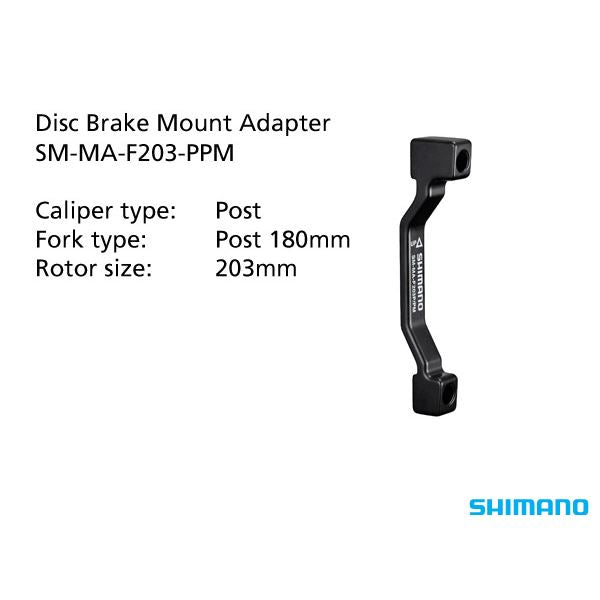

This adapter allows you to drive a 203 mm brake disc on the front and rear wheel.
The brake mount on the fork, the frame and the brake attachment must comply with the Post Mount standard!

Make sure you ask the manufacturer of the frame or fork if this / these standard post mount mount has for 180 mm brake discs and is suitable for 203 mm discs!

Technical specifications:

Material adapter: aluminum
Material screws: steel
possible front brake disc size: 203 mm
possible rear brake disc size: 203 mm
mount fork: Post Mount PM 7 "(180 mm)
mount rear: Post Mount PM 7 "(180 mm)
mount Brake: Post Mount
Color: Black

Weight according to the manufacturer: n / a
Weight weighed: 37g

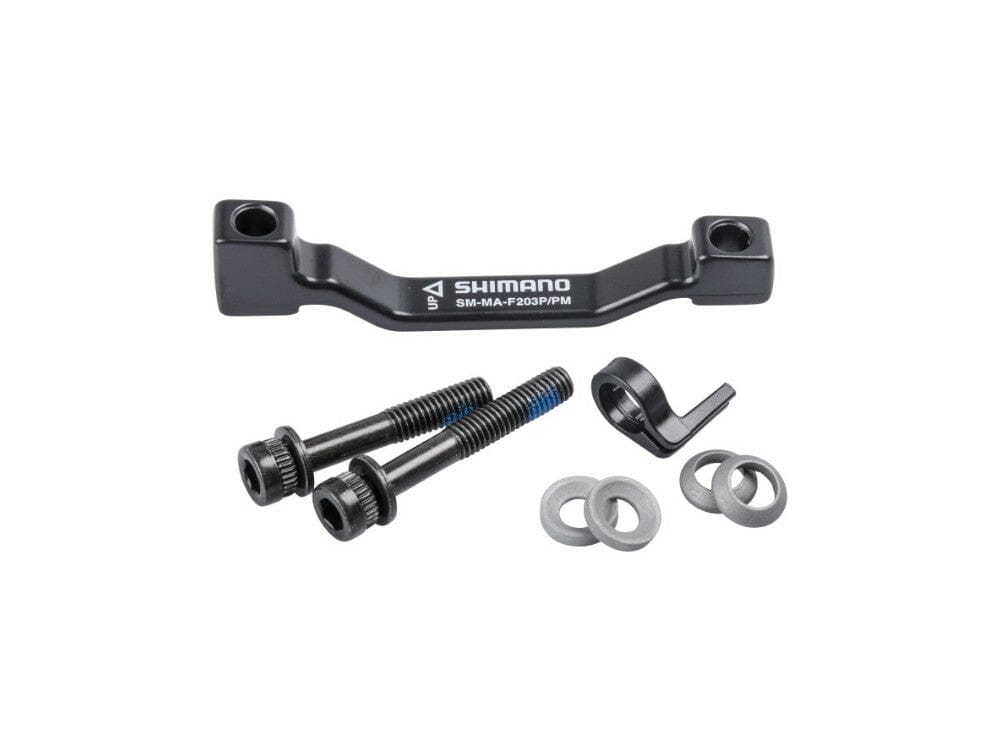

Scope of delivery: 1x SHIMANO adapter PM - PM +23 mm | Front / rear 203 mm including fastening screws

EAN:

4550170506117

MPN:

ESMMAF203PPMA
